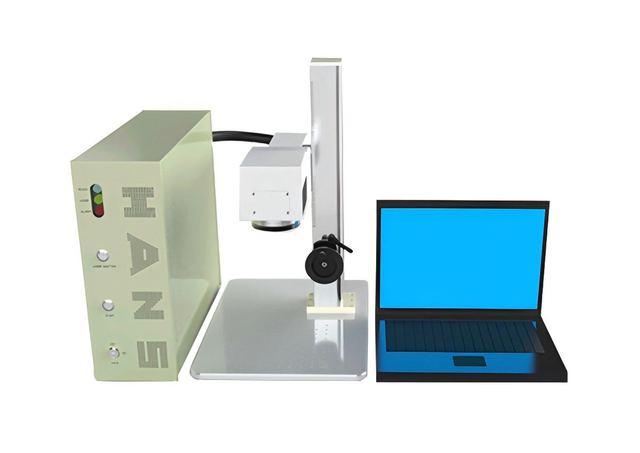

Laser Marking & Engraving Machine U20
Overview
Laser Marking & Engraving Machine U20 supplied by Laser Corporation. Listed under Laser Marking Machines. Key published specifications: Laser Type MOPA Fiber Laser; Wavelength 1064 nm; Min Beam Diameter < 30 µm; Pulse Width adjustment ranges 4ns, 8ns, 14ns, 20ns, 30ns,50ns, 100ns, 200ns. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Laser Type | MOPA Fiber Laser |
|---|---|
| Wavelength | 1064 nm |
| Min Beam Diameter | < 30 µm |
| Pulse Width adjustment ranges | 4ns, 8ns, 14ns, 20ns, 30ns,50ns, 100ns, 200ns |
| Pulse Frequency | 1.5 – 1000 kHz |
| Output Power | 20, 30, 50, 100 Watts Fiber |
| Cooling System | Air-cooled |
| Operation System | WINDOWS 7 or 10 |
| Power Consumed | 500W |
| Weight (unpacked) | 100 lbs (45kg) |
| Warranty Coverage | 2-year |
| Laser Safety Level | Class IV |
| Running Temperature | 15℃-35℃ / 59°-95°F |
