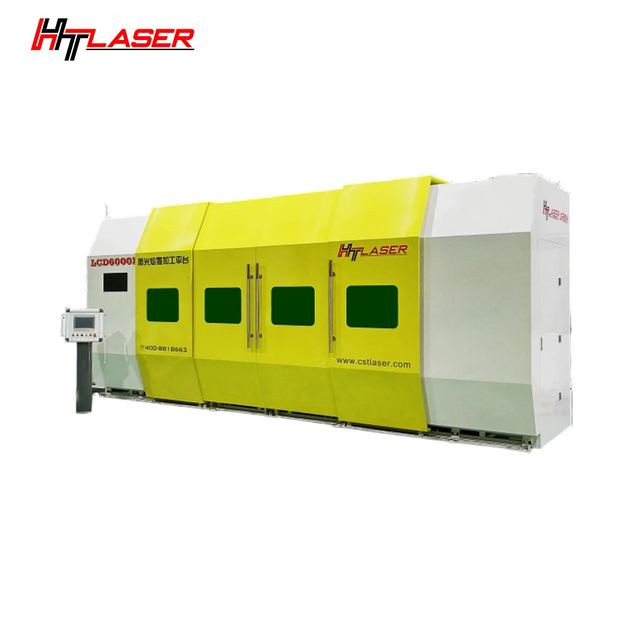

Laser Cladding Machine
Model HT-LCD6000W
Overview
Laser Cladding Machine supplied by Shenzhen Chinasky Laser Technology Co., Ltd. Listed under Lasers. Key published specifications: Laser Power 6000 W; Laser Type Diode Laser; Laser Wavelength 800–1000 nm; Powder Feed Rate 20–200 g/min. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Laser Power | 6000 W |
|---|---|
| Laser Type | Diode Laser |
| Laser Wavelength | 800–1000 nm |
| Powder Feed Rate | 20–200 g/min |
| Processing Size | Diameter: 40–630 mm |
| Repeatability | ±0.05 mm |
| Total Power | ≤25 kW |
| Machine Weight | 6000 kg |
| Dimensions | 6000 × 1800 × 2800 mm |
| Workpiece Load Capacity | 800 kg |
| Standard models | 7–10 days shipping. |
| Diameter | 40–630 mm |
| Length | ≤3500 mm |
