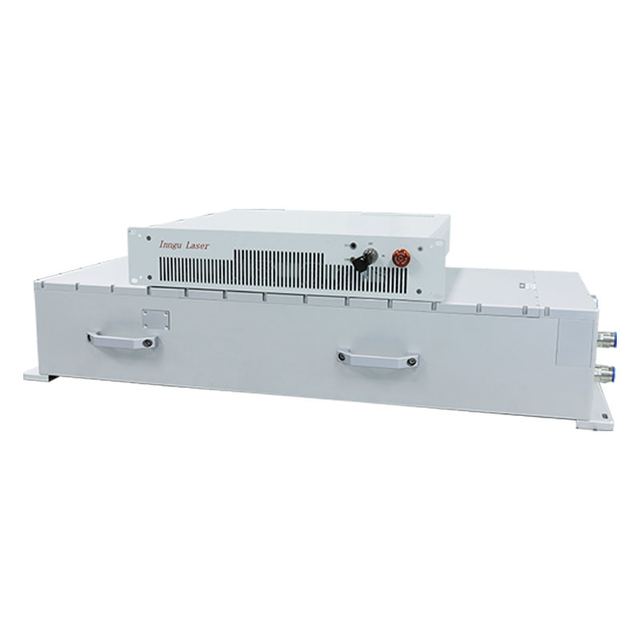

527nm YLF Laser

Model GP 527-30

527nm YLF Laser

Overview

Suzhou Inngu Laser Co., Ltd in Suzhou, Jiangsu lists 527nm YLF Laser under Lasers. Wavelength 527nm, pulse repetition rate range 1kHz – 10kHz and pulse width 130-170ns are among the specifications published.

Technical specifications

Wavelength527nm
Pulse Repetition Rate Range1kHz – 10kHz
Pulse Width130-170ns
Average Power Stability<±3% over 24 hours
Pulse to Pulse Stability<1%rms
Spatial ModeM² <20
Beam Divergence Full Angle8mrad±1.2
1/e² Beam Diameter~5mm±0.5
Polarization DirectionVertical
Beam Pointing Stability<25urad
