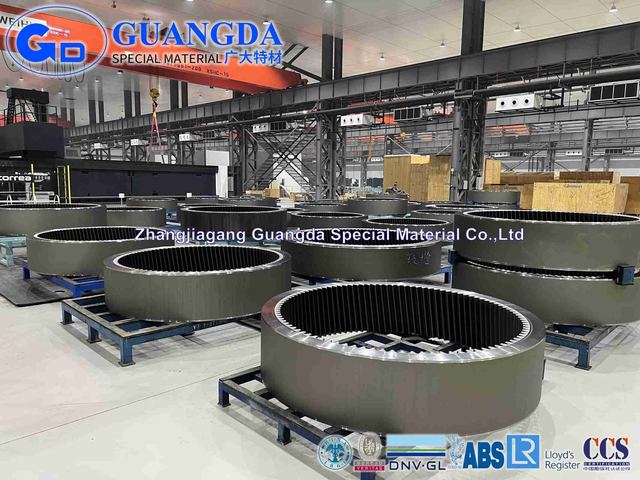

Internal Bevel Helical Gear Ring And Pinion Gear
Overview
Internal Bevel Helical Gear Ring And Pinion Gear supplied by Zhangjiagang Guangda Special Material Co., Ltd. Key published specifications: Shaping Tooth grinding; Max O.D. 5000mm; Max Face Width 2200mm; Max module M35. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Shaping | Tooth grinding |
|---|---|
| Max O.D. | 5000mm |
| Max Face Width | 2200mm |
| Max module | M35 |
| AGMA leval/DIN leval | DIN3962 CLASS 8 |
| Din3962 Class 8 | DIN3962 CLASS 4 |
| Tooth Surface finishing | Ra3.2 |
| Material | 18CrNiMo7-6,17CrNiMo6,18CrNiMo7 Etc |
| Diameter | Max 5000mm |
| Type | Forging |
