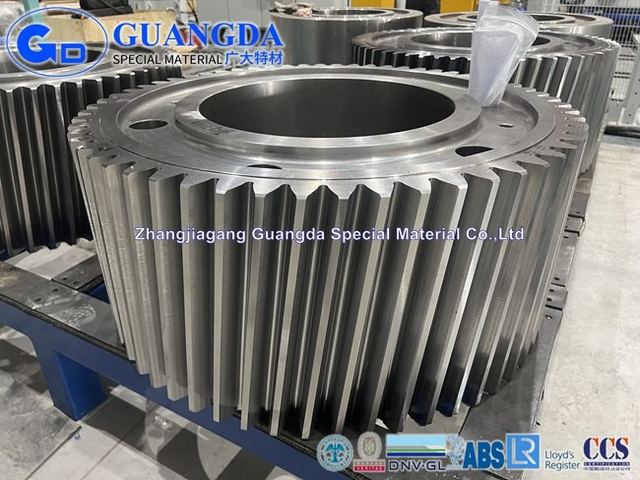

Cylindrical Gear Spiral Bevel Gear
Overview
Cylindrical Gear Spiral Bevel Gear, listed by Zhangjiagang Guangda Special Material Co., Ltd in Zhangjiagang, Jiangsu. Published figures include shaping Tooth grinding, max o.d. 5000mm and max face width 2200mm.
Technical specifications
| Shaping | Tooth grinding |
|---|---|
| Max O.D. | 5000mm |
| Max Face Width | 2200mm |
| Max module | M35 |
| AGMA leval/DIN leval | DIN3962 CLASS 8 |
| Din3962 Class 8 | DIN3962 CLASS 4 |
| Tooth Surface finishing | Ra3.2 |
| Material | 18CrNiMo7-6,17CrNiMo6,18CrNiMo7 Etc |
| Diameter | Max 5000mm |
| Type | Forging |
