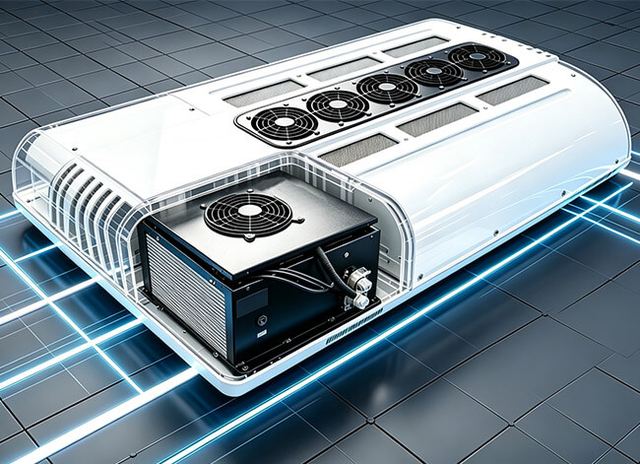

Integrated: A/C & BTMS
Model TKT-420E
Overview
Integrated: A/C & BTMS supplied by TKT EV solution. Listed under Batteries. Key published specifications: Cooling 42 KW/(143K BTU); Application 10M-12M EV Bus; Refrigerant R407C; Compressor Voltage/Power Supply DC450-750 V. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Cooling | 42 KW/(143K BTU) |
|---|---|
| Application | 10M-12M EV Bus |
| Refrigerant | R407C |
| Compressor Voltage/Power Supply | DC450-750 V |
| Control Voltage/Power Supply | DC24 V/10 A |
| Electric bus A/C Compressor | Japan SANYO Brand Vortex Compressor (74.4 cc/r) |
| Fan Air Volume | 9000 m³/h (6 Fans) |
| Blower Air Volume | 14400 m³/h (9 Blowers) |
| Dimension | 3200*1830*250 mm |
| Product Model | 10R / 10CW |
| Capacity | Cooling: 8KW~10KW |
| Voltage | DC 220~450V / 400~750V / 500~900V |
| Flow | 45-75L/min |
| Weight | 40 KG |
| Dimension (L*W*H) | 780*430*380mm |
| Installation Location | Roof/ Side/ Rear Mount |
| Control Power (V/A) | DC24V/10A or DC12V/20A |
| Integrated | A/C & BTMS |
| Heating | 6-10KW (Optional) |
