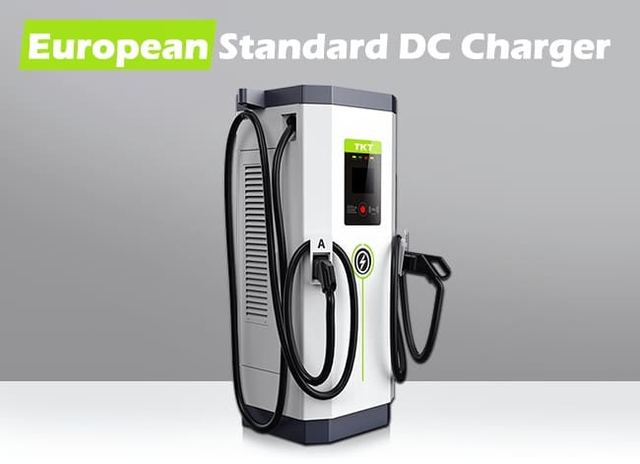

EU-Compliant DC Fast Charger (60kW-360kW)
Overview
EU-Compliant DC Fast Charger (60kW-360kW) supplied by TKT EV solution. Listed under Batteries. Key published specifications: Input Voltage 3-Phase 400V/440V/480V+15% AC; Working Frequency 45-65Hz; Charging Interface CCS1 / CCS2 / CHAdeMO / GBT *2; Screen Size 8” LCD Touchscreen (Maximum brightness above 800nit). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Input Voltage | 3-Phase 400V/440V/480V+15% AC |
|---|---|
| Working Frequency | 45-65Hz |
| Charging Interface | CCS1 / CCS2 / CHAdeMO / GBT *2 |
| Screen Size | 8” LCD Touchscreen (Maximum brightness above 800nit) |
| Network Connection | 4G, Ethernet |
| Communication Protocols | OCPP1.6J or OCPP2.0 |
| Charging Cable Length | 5m / 7.5m / 10m optional |
| Working Temperature | -35°C – +55°C |
| Certificate | ISO9001, IATF16949, TUV, CE, IEC61851-1,IEC 62196-2 |
| Connector Standard | CCS1 / CCS2 / CHAdeMO / GBT *2 |
