How to Read
Overview

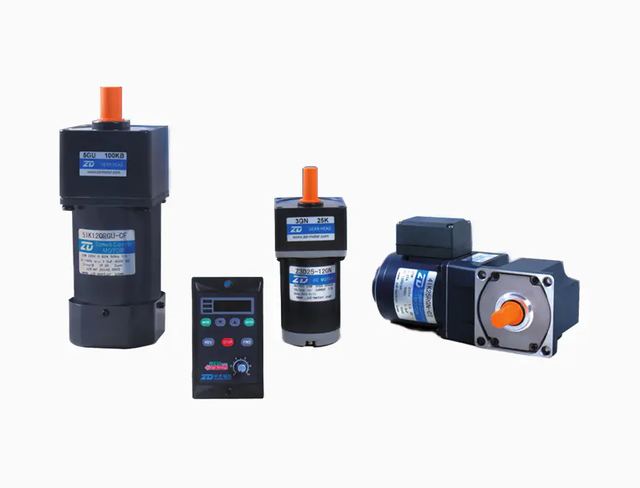

How to Read supplied by Ningbo Zhongda Leader Intelligent Transmission Co., Ltd. Listed under Gear-Motors. Key published specifications: A:Single-Phase 110V50/60Hz 4P H :Single-Phase 220/230V60Hz 4P; BSingle-Phase 110V50Hz 2P S :Three-Phase 200/220/230V50/60Hz 4P; C:Single-Phase 220/230V50Hz 4P S3:Three-Phase380/400/415V50/60Hz 4P; D:Single-Phase 220V50Hz 2P T :Three-Phase 200/220/230V50/60Hz 2P. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| A:Single-Phase 110V50/60Hz 4P | H :Single-Phase 220/230V60Hz 4P |
|---|---|
| BSingle-Phase 110V50Hz 2P | S :Three-Phase 200/220/230V50/60Hz 4P |
| C:Single-Phase 220/230V50Hz 4P | S3:Three-Phase380/400/415V50/60Hz 4P |
| D:Single-Phase 220V50Hz 2P | T :Three-Phase 200/220/230V50/60Hz 2P |
| E:Single-Phase 110V/120V60Hz 4P | T3:Three-Phase 380/400/415V50/60Hz 2P |
| Item | Specifications |
| Insulation Class | UL/CSA Standards: Class A(105°C) EN Standards: Class B(130°C) |
| Ambient Humidity | <85% (Noncondensing) |
| 6W Type | 115X115 |
| 15WType | 125X125 |
| 25W (2P-High-Speed 4IK40 Type, 4IK60 Type) | 135X135 |
| 40W、60W Type | 165X165 |
| 60W、90W、120WType (2P High-Speed 5IK150Type) | 200X200 |
| 120W、140W、200WType | 230X230 |
| UL/CSA Standards | Class A(105°C) |
| EN Standards | Class B(130°C) |
| Lead wire type | IP20 ：Terminal Box Type |
| Heat Radiation Plate(Material | Aluminum) |
