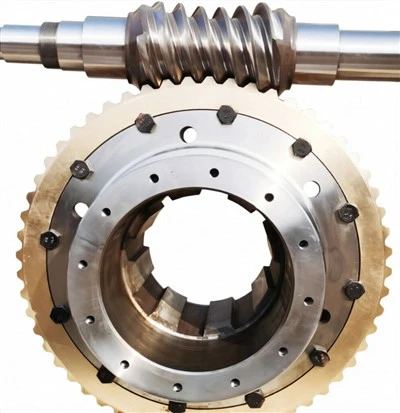

Gear
Overview
Gear supplied by Zhejiang Guangjin Intelligent Technology Co.,Ltd. Listed under Gear-Motors. Key published specifications: Teeth Z13-Z150; DIN Class Level DIN 5-8; Gear Hobbing Level DIN 7-8; Max O.D.(mm) 1500 mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Teeth | Z13-Z150 |
|---|---|
| DIN Class Level | DIN 5-8 |
| Gear Hobbing Level | DIN 7-8 |
| Max O.D.(mm) | 1500 mm |
| Gear Milling Level | DIN 7-8 |
| Min I.D.(mm) | 18 mm |
| Gear Shaping Level | DIN 8 |
| Gear Grinding Level | DIN 5 |
| Gear Broaching Level | DIN 8 |
| Gear Shaving Level | DIN 7-8 |
| Tooth Finish | Ra 0.4, Ra 0.8, Ra 1.6, Ra 3.2 |
| Manufacture Standard | DIN, JIS, ASTM, GB, AGMA |
| Structure | Forging, Casting |
| Surface treatment | Customized |
| Material | High-strength steel, alloy steel |
| Load capacity | Suitable for high-load environments |
| Applications | ● Industrial equipment |
| Maximum speed | Maintains performance in high-speed environments |
| Materials | Carbon steel, alloy steel |
| Maximum Torque | Suitable for high-load environments |
