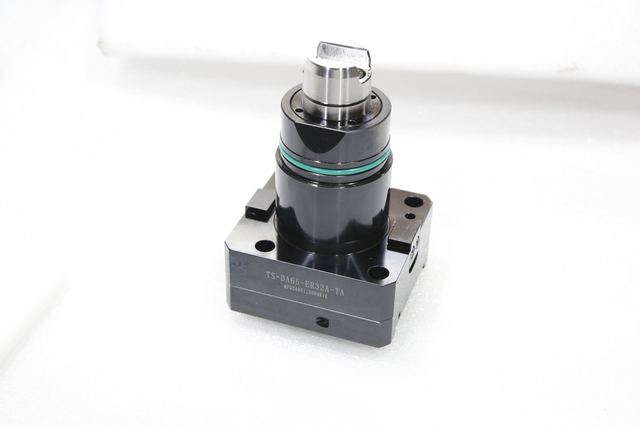

High Precision 0 Degree Tool Holder for CNC Lathe with 4000rpm Speed and ER32 Clamping
Overview
High Precision 0 Degree Tool Holder for CNC Lathe with 4000rpm Speed and ER32 Clamping supplied by Lingman Machinery Technology (Changzhou) Co., Ltd. Listed under Chucks. Key published specifications: Clamping Range 2mm To 20mm; Rotation Accuracy 3x Tool Overhang Runout ≤ 0.003mm; Transmission Ratio 1:1 Straight Tooth Grinding Gear, No Reduction Loss; Rated Maximum Speed 4000rpm (optional 6000rpm High-speed Customized Version). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Clamping Range | 2mm To 20mm |
|---|---|
| Rotation Accuracy | 3x Tool Overhang Runout ≤ 0.003mm |
| Transmission Ratio | 1:1 Straight Tooth Grinding Gear, No Reduction Loss |
| Rated Maximum Speed | 4000rpm (optional 6000rpm High-speed Customized Version) |
| Rated Output Torque | 85N · M |
| Suitable Cutting Power | ≤ 3.7kW |
| Gear Material | 20CrMnTi Carburizing And Grinding, Wear-resistant And Low-noise |
