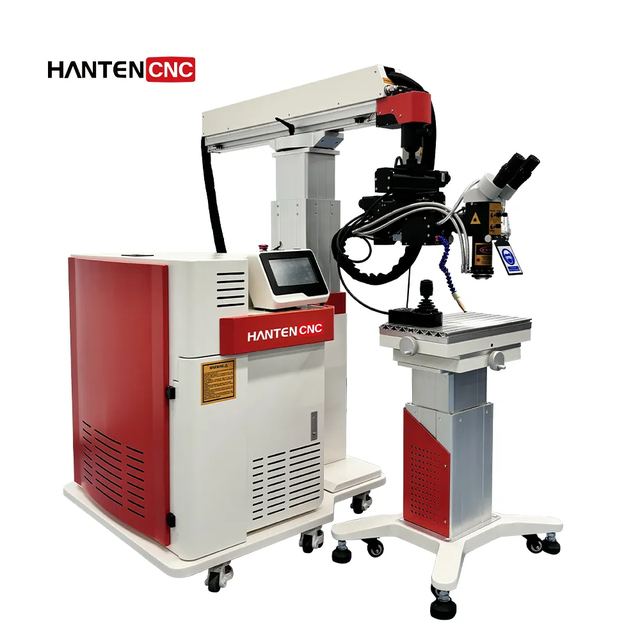

HANTENCNC Arm-type Laser Welding Machine for Mould Repair
Model HTW200
Overview
HANTENCNC Arm-type Laser Welding Machine for Mould Repair, listed under Welding Equipment Repair Services by HANTENCNC. Published figures include laser type QCW laser (Quasi Continuous Wave), max laser power 150W and laser wavelength 1080 ± 10nm.
Technical specifications
| Laser Type | QCW laser (Quasi Continuous Wave) |
|---|---|
| Max Laser Power | 150W |
| Laser Wavelength | 1080 ± 10nm |
| Laser Fiber Length | 10M |
| Pulse Frequency | 1–30Hz |
| Pulse Width | 1–20ms |
| Spot Size Range | 0.2–3mm |
| Aiming | Microscope (Optional Camera System) |
| Cooling System | Water Chiller |
| Chiller Power | 0.4P |
| Rated Power Consumption | 2.5KW |
| Power Supply | 220V ±5V 50Hz / 60A |
| 3D Workbench Load Capacity | 50kg |
| Machine Dimensions | 1650 × 920 × 1150mm |
| 3D Workbench Dimensions | 600 × 450 × 600mm |
