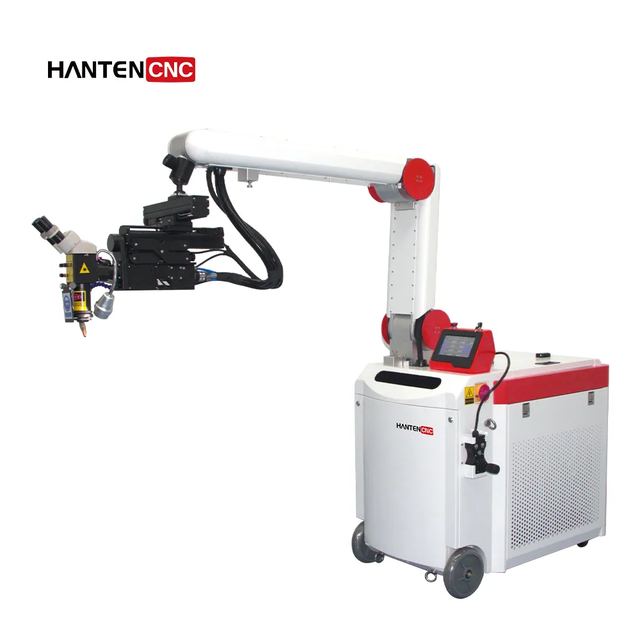

Articulated-Arm Laser Welding Machine for Large Mold Repair
Model HTW200
Overview
Articulated-Arm Laser Welding Machine for Large Mold Repair, listed by HANTENCNC. Laser type QCW laser (Quasi Continuous Wave), max laser power 150W and rated power consumption 2.5KW are among the specifications published.
Technical specifications
| Laser Type | QCW laser (Quasi Continuous Wave) |
|---|---|
| Max Laser Power | 150W |
| Rated Power Consumption | 2.5KW |
| Power Supply | 220V ±5V 50Hz / 60A |
| Laser Wavelength | 1080 ± 10nm |
| Laser Fiber Length | 10M |
| Laser Frequency | 1–30Hz |
| Pulse Width | 1–20ms |
| Spot Size Range | 0.2–3mm |
| Cooling Method | Water Chiller |
| Chiller Power | 0.4P |
| Microscope & Vision System | Microscope / CCD Camera(Optional) |
| Cantilever Arm | 360° continuous rotation for flexible multi-angle operation |
| Working Area (X-Y-Z) | 200 × 200 × 100 mm |
| Machine Dimensions | 1380 × 1000 × 1240mm |
