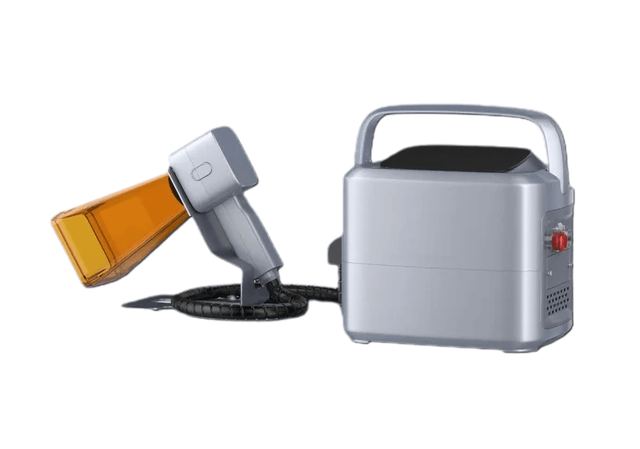

Hand-held Laser Marking Machine
Model KR-HF20
Overview
Hand-held Laser Marking Machine supplied by Beijing Kirin Laser Technology Co., Ltd. Key published specifications: Supply voltage 110V/220V 50/60Hz; Overall Power Consumption 460W; Output Power 20W; Galvo Head ZBTK/Sino-galvo. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Supply voltage | 110V/220V 50/60Hz |
|---|---|
| Overall Power Consumption | 460W |
| Output Power | 20W |
| Galvo Head | ZBTK/Sino-galvo |
| Marking Area | 120mm*80mm |
| Marking Linewidth | 0.01mm-0.1mm |
| Minimum Character Size | 0.15mm |
| Power Adjustment Range(%) | 0-100(Gradient Adjustable) |
| Marking Speed | 0-7000mm/s |
| Fiber Cable Length | 3m |
| Laser Wavelength | 1064nm |
| Cooling Method | Air-cooled |
| Machine Dimensions | 270mm*155mm*245mm |
| Machine Weight | About 8.25Kg |
