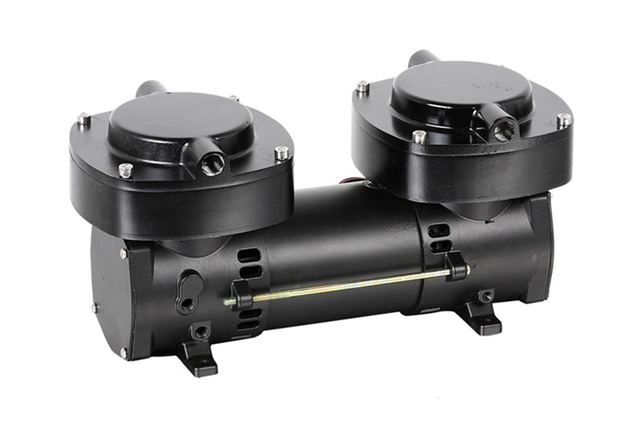

GZ70B DC Brushed Diaphragm Pump
Overview
GZ70B DC Brushed Diaphragm Pump supplied by Maisi. Key published specifications: Flow 136L/min; Max.pressure 2.5bar; Max.vacuum -800mbar; Head configuration Pressure/vacuum. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Flow | 136L/min |
|---|---|
| Max.pressure | 2.5bar |
| Max.vacuum | -800mbar |
| Head configuration | Pressure/vacuum |
| voltage/frequency | 12DC |
| MAX No-load flow | 136L/min |
| Max power | 200W |
| Max current | 16/9A |
| Inlet /outlet diameter | G1/4" |
| Speed | 1900RPM |
| Motor type | Brushed |
| Net Weight | 4.8KG |
| Motor insulation class | E |
| Head material | Aluminium die-casting |
| Membrane material | EPDM |
| Valve material | Stainless steel |
