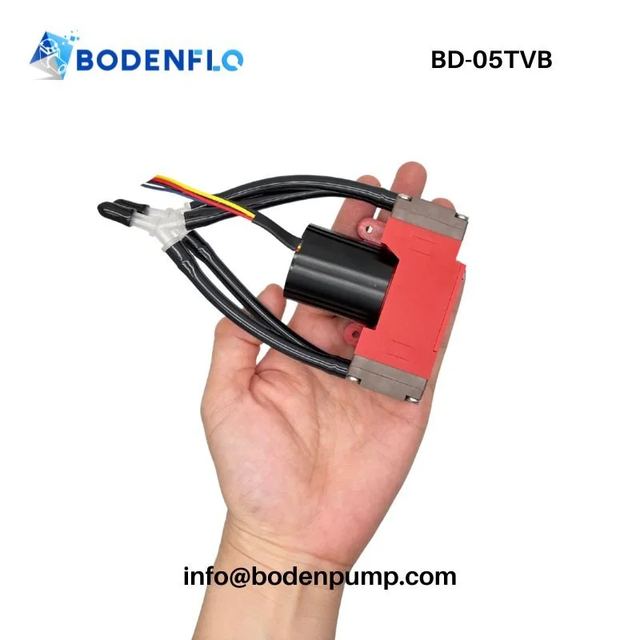

Dual Head Diaphragm Pump
Model BD-05TVB
Overview
Dual Head Diaphragm Pump supplied by Shenzhen Boden Technology Development Co., Ltd. Key published specifications: Voltage 12/24V; Max Flow 7.2L/min (parallel); Max Vacuum –70 kPa (parallel); Max Pressure 1~1.5Bar. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Voltage | 12/24V |
|---|---|
| Max Flow | 7.2L/min (parallel) |
| Max Vacuum | –70 kPa (parallel) |
| Max Pressure | 1~1.5Bar |
| Max Power | 8 W |
| Weight | 188g |
| Voltage Range | 12 V / 24 V |
| Parallel Mode | 7.2 L/min, -70 kPa |
| Series Mode | 4.6 L/min, -90 kPa |
| Max Positive Pressure | 1.0 – 1.5 bar |
| Motor Type | Brushless DC |
| Max Power Consumption | 8 W |
| IP Rating | IP54 |
| Pump Head Material | PPS (Polyphenylene Sulfide) |
| Diaphragm/Valve | EPDM (Optional FKM) |
| Pump Body | Nylon |
| Dimensions | 76.2 × 32 × 64.3 mm |
| Sealing | Professional-grade low leakage |
| Lifetime | >8000–10,000 hours (brushless motor) |
| Customization Aspect | Options / Notes |
| Pump Label & Branding | Custom labeling for OEM clients |
