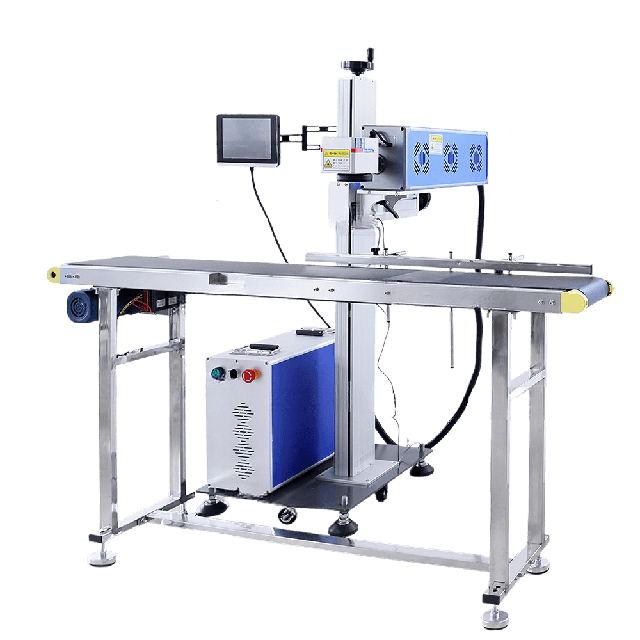

Flying CO2 Laser Marking Machine
Model KR-FC30
Overview
Flying CO2 Laser Marking Machine supplied by Beijing Kirin Laser Technology Co., Ltd. Key published specifications: Power 30W, 60W, or 100W; Laser source Davi / CRD; Galvanometer Sino-galvo/ZBTK; Wavelength 10.64 µm / 9.3 µm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Power | 30W, 60W, or 100W |
|---|---|
| Laser source | Davi / CRD |
| Galvanometer | Sino-galvo/ZBTK |
| Wavelength | 10.64 µm / 9.3 µm |
| Beam Quality | M2 < 1.3 |
| Output Frequency | 20 kHz – 100 kHz |
| Power Stability (8h) | < ±1% RMS |
| Focus Spot Diameter | < 0.01 mm |
| Engraving Speed | 10000mm/s |
| 10000mm/s | 12000mm/s |
| Minimum Line Width | 0.012 mm |
| Minimum Character Height | 0.1 mm |
| Repeated Accuracy | ±0.003 mm |
| Cooling Mode | Air Cooling |
| Air Cooling | Water Cooling |
| Operating Temperature | 10°C – 35°C |
| Power Requirement | 220V/50Hz or 110V/60Hz |
| Laser Module Life | 40,000 – 60,000 hours |
