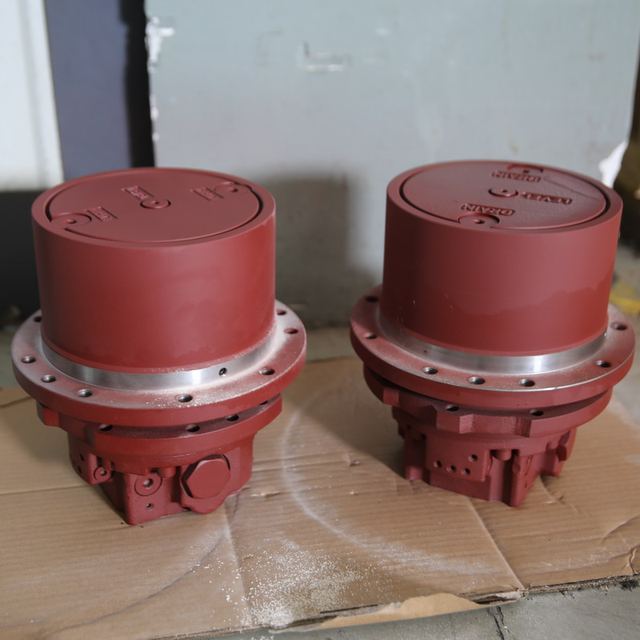

Final Drive PHV-3B
Model PHV-3B
Overview
Final Drive PHV-3B supplied by WEITAI. Key published specifications: Frame connection diameter 165mm; Frame flange bolt 11-M12; Frame flange P.C.D. 192mm; Sprocket connection diameter 190mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Frame connection diameter | 165mm |
|---|---|
| Frame flange bolt | 11-M12 |
| Frame flange P.C.D. | 192mm |
| Sprocket connection diameter | 190mm |
| Sprocket flange bolt | 11-M12 |
| Sprocket flange P.C.D. | 212mm |
| Flange distance | 50mm |
| Approximate weigth | 40kg (90lbs) |
