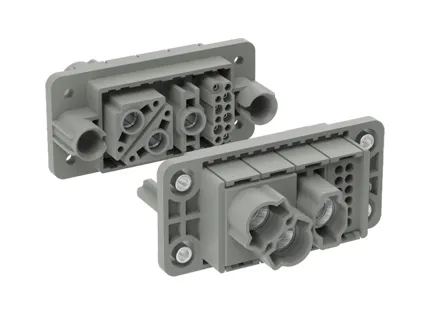

ESC-M16B-(3C150+12C10)
Overview
ESC-M16B-(3C150+12C10) supplied by Zhejiang Yonggui Electric Equipment Co., Ltd. Listed under Energy Storage Systems. Key published specifications: Current Rating 100A、150A(Power)、10A(Signal); Voltage Rating 1500V(Power)、250V(Signal); Dielectric Withstanding Voltage 6800V、2210V AC 50Hz; Cable range 6mm² ~ 35mm²(Power)0.14mm² ~ 2.5mm²(Signal). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Current Rating | 100A、150A(Power)、10A(Signal) |
|---|---|
| Voltage Rating | 1500V(Power)、250V(Signal) |
| Dielectric Withstanding Voltage | 6800V、2210V AC 50Hz |
| Cable range | 6mm² ~ 35mm²(Power)0.14mm² ~ 2.5mm²(Signal) |
| Temperature rise | ≤45K |
| Floating tolerance | ±2mm |
| Mechanical Life | ≥500 cycles |
| Certification | UL、CE |
