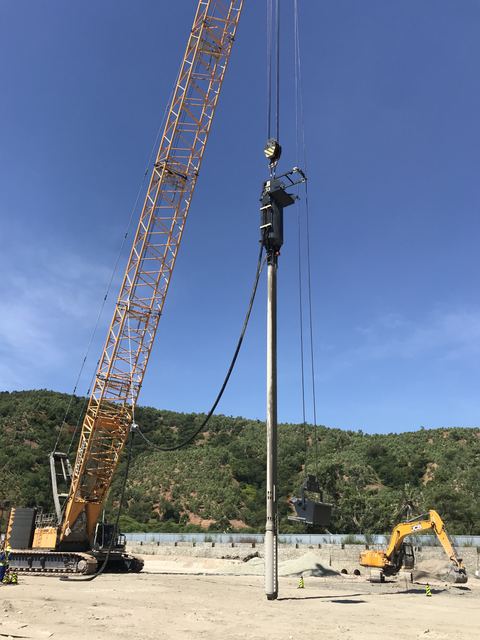

Electrical Vibroflot Deep Water Port Wharf Foundation Reinforcement Soil Compaction and Ground Improvement
Model APV426-100E
Overview
Electrical Vibroflot Deep Water Port Wharf Foundation Reinforcement Soil Compaction and Ground Improvement supplied by APIE FOUNDATION EQUIPMENT （CHINA）LIMITED. Listed under Drilling Rigs. Key published specifications: Max. Speed 1450 R/min; Vibration Force 195 Kg; External Diameter 426 Mm; Weight 2170 Kg. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Max. Speed | 1450 R/min |
|---|---|
| Vibration Force | 195 Kg |
| External Diameter | 426 Mm |
| Weight | 2170 Kg |
| Length | 2885 Mm |
| Max. Amplitude | 17 Mm |
| Diameter of the Length Work Pile | 1000-1200 Mm |
| Motor Power | 100 KW |
| Rate Current | 195 A |
| Certification | ISO and CE certificate |
| Technical Parameters | Product Name |
