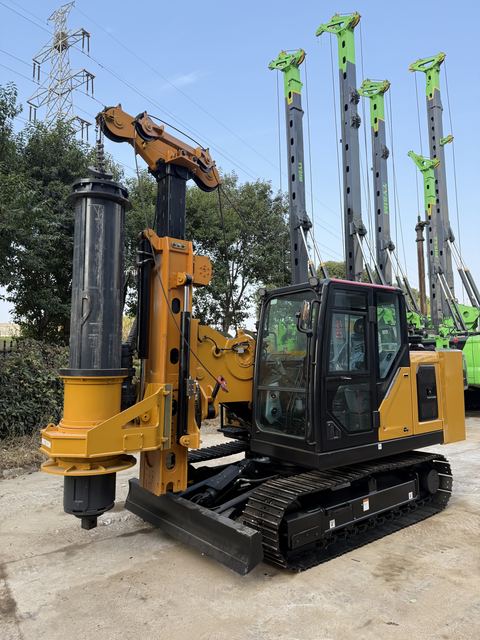

Low Headroom Mini Rotary Rig for Indoor Basement Micropile Construction
Model HPR35A
Overview
APIE FOUNDATION EQUIPMENT （CHINA）LIMITED lists Low Headroom Mini Rotary Rig for Indoor Basement Micropile Construction under Construction. The listing gives transport length 4.65 m (w/ kelly), rotary head output torque 35 kN·m and pressure force 40 kN.
Technical specifications
| Transport Length | 4.65 m (w/ kelly) |
|---|---|
| Rotary Head Output Torque | 35 kN·m |
| Pressure Force | 40 kN |
| Lifting Force | 50 kN |
| Drilling Depth (Max) | 12 m |
| Operating Weight | 9300 kg |
| Rotation Speed | 7~40 rpm |
| Working Height | 6 m |
| Transport Width | 2 m |
| Drilling Diameter (Range) | 380~1000 mm |
| Certification | CE and ISO9001 |
| Transport Height With Kelly Bar | 3.05 M |
| Technical Parameters | Transport Length |
