Overview

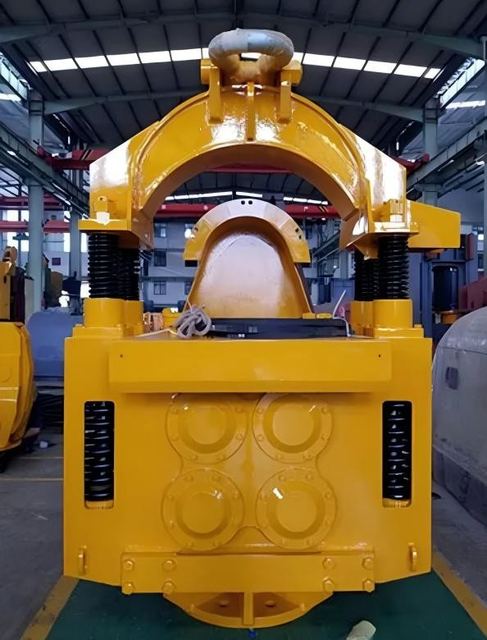

Electric Vibratory Hammer DZ120A, listed by Shanghai Yekun Construction Machinery Co., Ltd in Shanghai. Certification ISO9001:2015, motor power 120 kW and vibration frequency (adjustable) 900 – 1050 r/min are among the specifications published.

Technical specifications

Certification	ISO9001:2015
Motor power	120 kW
Vibration frequency (adjustable)	900 – 1050 r/min
Eccentric moment	700 N·m
Exciting force	1000 kN
Amplitude (no load)	10.3 mm
Allowable extraction force	400 kN
Total weight	8800 kg
Height	2.84 m
Length	1.72 m
Width	1.4 m
Cable size	95 mm²
Clamp type	Single / Dual (optional)
Suitable pile diameter	500 – 2000 mm
Required generator power	≥ 350 kW
Minimum crane capacity	50 t
