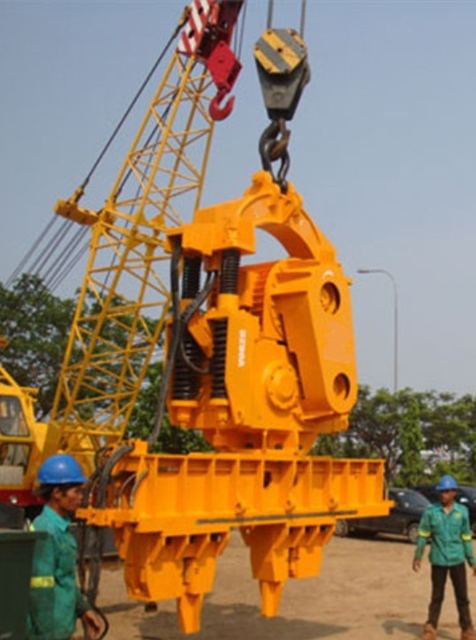

Electric Vibratory Hammer DZ150A
Model DZ150A
Overview
Electric Vibratory Hammer DZ150A, listed by Shanghai Yekun Construction Machinery Co., Ltd in Shanghai. The listing gives certification ISO9001:2015, motor power 150 kW and vibration frequency (adjustable) 780 – 1100 r/min.
Technical specifications
| Certification | ISO9001:2015 |
|---|---|
| Motor power | 150 kW |
| Vibration frequency (adjustable) | 780 – 1100 r/min |
| Eccentric moment | 820 N·m |
| Exciting force | 1000 kN |
| Amplitude (no load) | 12.5 mm |
| Allowable extraction force | 400 kN |
| Total weight | 9530 kg |
| Height | 3.34 m |
| Length | 1.71 m |
| Width | 1.5 m |
| Cable size | 110 mm² |
| Clamp type | Single / Dual (optional) |
| Suitable pile diameter | 600 – 2500 mm |
| Required generator power | ≥ 450 kW |
| Minimum crane capacity | 70 t |
