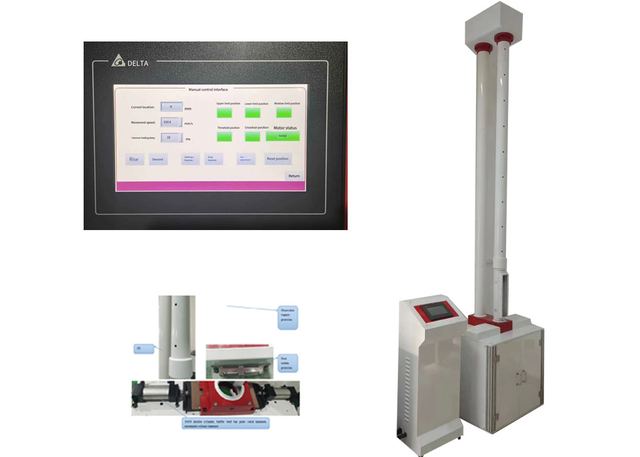

Drop Hammer Test Equipment for Material Impact Resistance Testing
Model XJL-300D
Overview
Drop Hammer Test Equipment for Material Impact Resistance Testing supplied by Beijing Jinshengxin Testing Machine Co., Ltd. Key published specifications: Certification ISO9001, CE; Test Type Drop Hammer Test; Test Range 0-300J; Drop Hammer Quality 0.5kg-16kg. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | ISO9001, CE |
|---|---|
| Test Type | Drop Hammer Test |
| Test Range | 0-300J |
| Drop Hammer Quality | 0.5kg-16kg |
| Control Mode | Automatic |
| Max. Height | 2000mm |
| Min. Height | 10mm |
| Power Supply | AC220V/50Hz |
| Hammer Diameter | D25mm, D90mm, etc |
| Height of the Fall | 10mm-2000mm, error≤±2mm |
| Diameter of the Sample | Φ16mm-Φ630mm |
| Deviation of Impact Center | ≤2mm |
| Power Source | 220VAC±10% |
| Outline Dimension | 715mm×700mm×3900mm |
| Net Weight | 380kg |
| Travel of Working Table | 0-630mm |
| Specimen Diameter | φ10~630mm |
