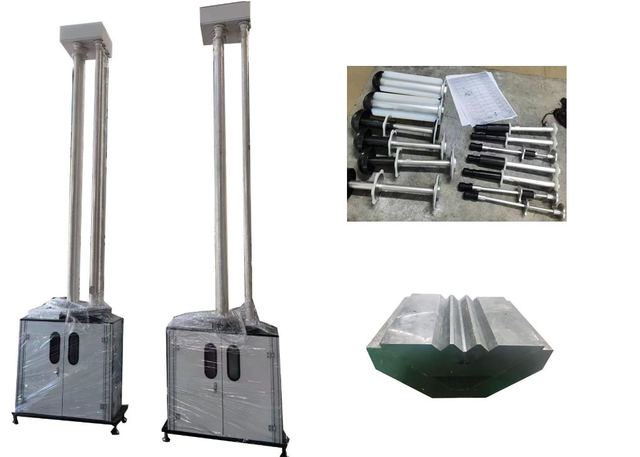

Drop Hammer Test Equipment for Material Impact Resistance Testing
Model XJL-630S
Overview
Drop Hammer Test Equipment for Material Impact Resistance Testing supplied by Beijing Jinshengxin Testing Machine Co., Ltd. Key published specifications: Certification ISO9001, CE; Hammer Diameter D25mm,D90mm, Etc; Test Range 0-300J; Drop Hammer Quality 0.5kg-16kg. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | ISO9001, CE |
|---|---|
| Hammer Diameter | D25mm,D90mm, Etc |
| Test Range | 0-300J |
| Drop Hammer Quality | 0.5kg-16kg |
| Max. Height | 2000mm |
| Min. Height | 10mm |
| Power Supply | AC220V/50Hz |
| Model | XJL-630S |
| Lifting Speed | 2m/s |
| Height of Fall | 10mm-2000mm, error ≤±2mm |
| Sample Diameter | Φ16mm-Φ630mm |
| Impact Center Deviation | ≤2mm |
| Power Source | 220VAC±10% |
| Dimensions | 715mm×700mm×3900mm |
| Net Weight | 480kg |
| Test Type | Drop Hammer Test |
| Travel of Working Table | 0-630mm |
| Specimen Diameter | φ10~630mm |
