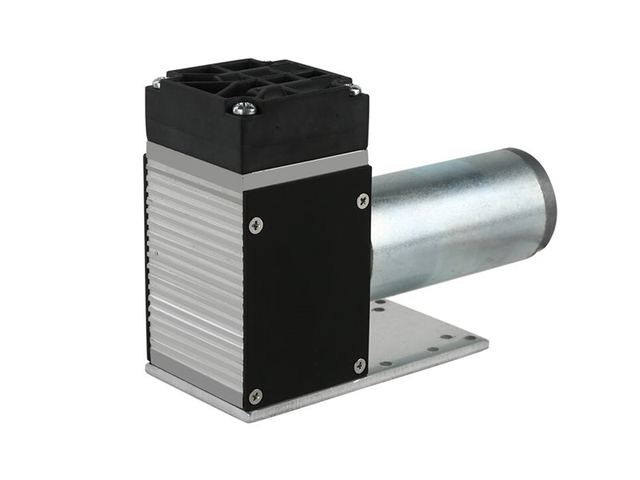

Diaphragm Pump TC-150A DC Series

Model TC-150A

Diaphragm Pump TC-150A DC Series

Overview

Diaphragm Pump TC-150A DC Series supplied by Maisi. Key published specifications: Flow 12L/min; Max.vacuum -850mbar; Max.pressure 3.3bar; Head configuration Pressure/Vacuum. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Flow12L/min
Max.vacuum-850mbar
Max.pressure3.3bar
Head configurationPressure/Vacuum
Voltage/frequency12V
MAX No-load flow12L/min
Max power15W
Max current1.3A
Inlet /outlet diameterG1/8"
Speed3400RPM
Net Weight1KG
Head materialPP
Membrane materialEPDM
Valve materialSilicone
