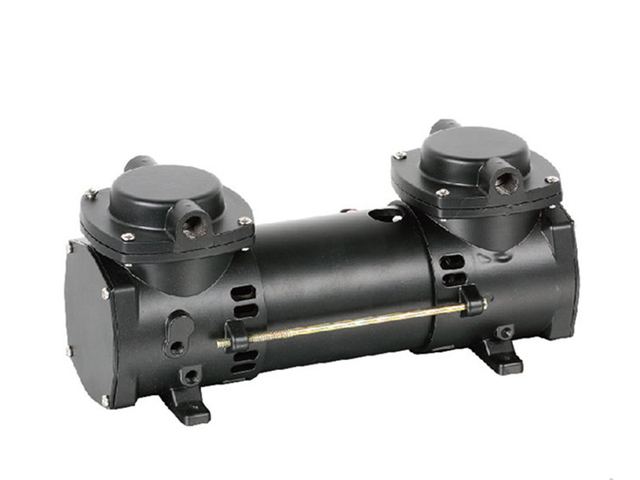

70LPM Micro Air Compressor
Model GZ 70B-12
Overview
70LPM Micro Air Compressor supplied by Maisi. Key published specifications: Head configuration Pressure/Vacuum; voltage/frequency 24VDC; MAX No-load flow 136L/min; Max.pressure 2.5bar. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Head configuration | Pressure/Vacuum |
|---|---|
| voltage/frequency | 24VDC |
| MAX No-load flow | 136L/min |
| Max.pressure | 2.5bar |
| Max power | 160W |
| Max current | 8/5A |
| Max vacuum | -800mbar |
| Inlet /outlet diameter | G1/4" |
| Speed | 1900RPM |
| Motor type | Brushed |
| Size | 323x125x142MM |
| Net Weight | 4.8KG |
| Motor insulation class | E |
| Line lead wire color,gauge | Blue/brown,18AWG |
| Head material | Aluminium die-casting |
| Membrane material | EPDM |
| Valve material | Stainless steel |
