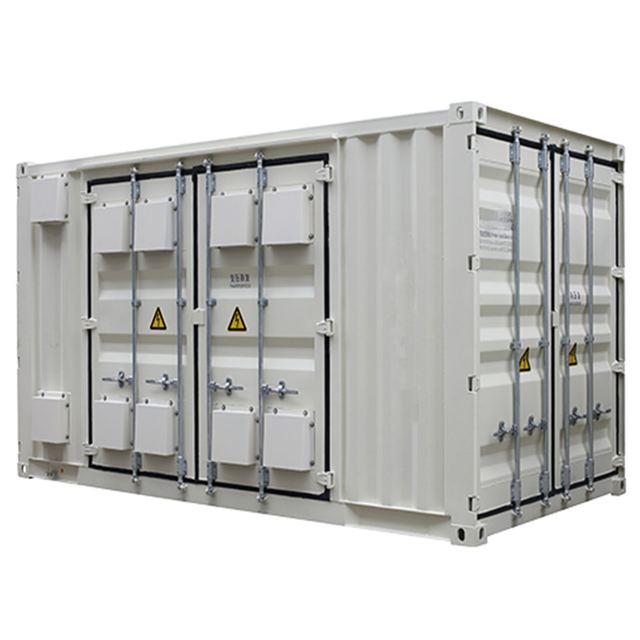

Containerised Substations (CSS)
Overview
Containerised Substations (CSS) supplied by ZTELEC Yuguang ElectricTechnology(Henan)CO.,Ltd. Listed under Transformers. Key published specifications: Rated voltage MV: 4.16–34.5 kV LV: 480–800 V; Rated capacity 2000kva-3600kva; Certifications & Standards IEC 62271‑202, IEEE C57.12.00, IEEE C57.12.28; Service Life 25 Years. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Rated voltage | MV: 4.16–34.5 kV LV: 480–800 V |
|---|---|
| Rated capacity | 2000kva-3600kva |
| Certifications & Standards | IEC 62271‑202, IEEE C57.12.00, IEEE C57.12.28 |
| Service Life | 25 Years |
| Altitude | ≤ 1000 m |
| Relative Humidity | Daily ≤ 95%, Monthly average ≤ 90% |
| Shockproof Level | Horizontal ≤ 0.3 m/s², Vertical ≤ 0.15 m/s² |
| Standards Compliance | IEC 62271‑202, IEEE C57.12.00, IEEE C57.12.28 |
| Rated Current | 630 A / 1250 A |
| Operating Frequency | 50 / 60 Hz |
| Power Frequency Withstand Voltage | 50 kV |
| Rated Impulse Withstand Voltage | 125 kV |
| Rated Short‑Circuit Breaking Current | 40 kA |
| High/Low Voltage Rated System | MV: 4.16–34.5 kV LV: 480–800 V |
| Circuit Breaker Rating | Up to 4000 A |
| Surge Protective Device | Type II |
