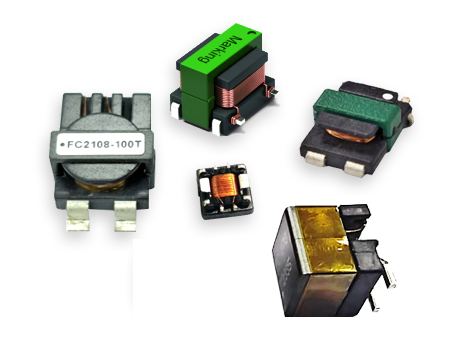

Current Transformers
Overview
Current Transformers supplied by Fangcheng Electronics(DongGuan) Co., Ltd. Listed under Transformers. Key published specifications: Height 5.5mm Max; Current Rating up to 20A; Frequency Range 100 kHz, 0.1 Vrms; Storage temperature Component –40°C to +125°C. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Height | 5.5mm Max |
|---|---|
| Current Rating | up to 20A |
| Frequency Range | 100 kHz, 0.1 Vrms |
| Storage temperature Component | –40°C to +125°C |
| Insulation | Reinforced, 6.5mm creepage ，Isolation AC3750Vrms UL |
| Voltage Rating | Up to 1000 Vpk |
| Operating temperature | –40℃ to +130℃ |
