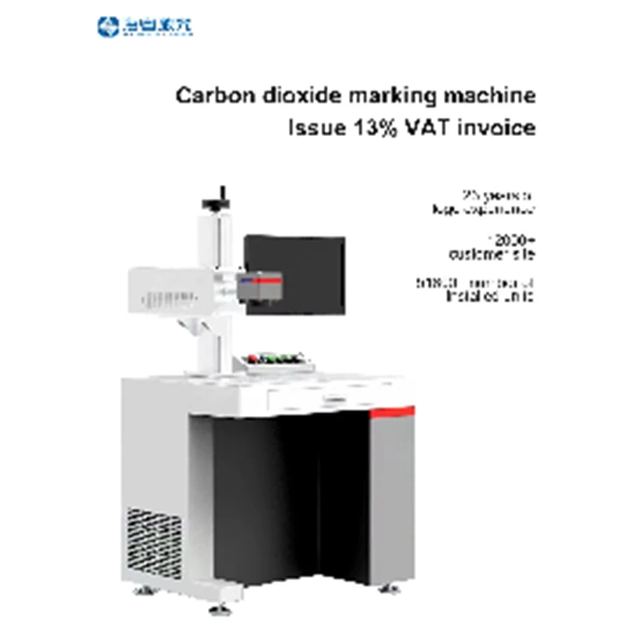

CO2 Marking Machine
Overview
CO2 Marking Machine supplied by Hangzhou Hairong Laser Technology Co., Ltd. Listed under Lasers. Key published specifications: ProductModel GH-30C; Laser center wavelength CO2/10.6; Nominal average output power 30W; Pulse repetition frequency 0-25KHZ. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| ProductModel | GH-30C |
|---|---|
| Laser center wavelength | CO2/10.6 |
| Nominal average output power | 30W |
| Pulse repetition frequency | 0-25KHZ |
| Standard line width | 0.1MM(View Materials)@F=150MM |
| Minimum character height | 0.4MM @F=150MM |
| Lifting mechanism | Manual,nominal travel:300MM |
| Grounding | Class D (ground resistance 1000Qor less) |
| Ambient humidity | No condensation |
| Oil pollution | Not allowed |
| Condensation | Not allowed |
| Scanning speed | F=150MM,≤7000MM/s |
| Manual,nominal travel | 300MM |
