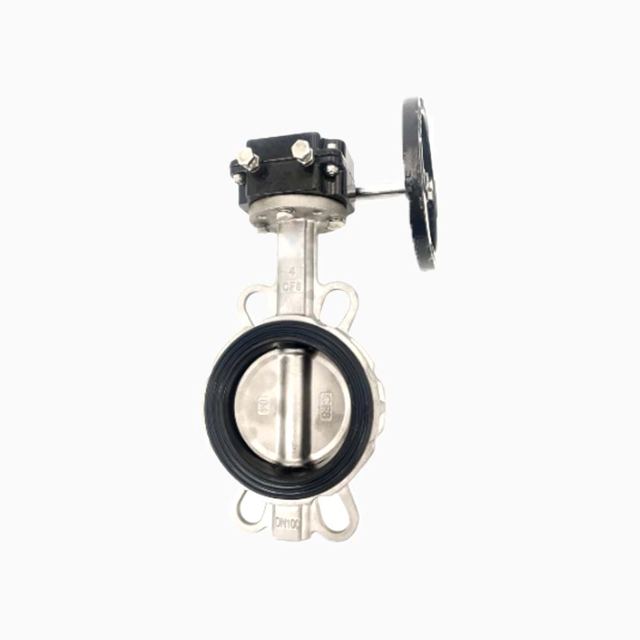

Centerline Wafer Butterfly Valve
Overview
Centerline Wafer Butterfly Valve supplied by TIANYU VALVE. Listed under Butterfly Valves. Key published specifications: Type D37A1X-10/16; Size DN50-DN1000; Design Standard GB/T12238, API609, BS EN593; Pressure PN10/16. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Type | D37A1X-10/16 |
|---|---|
| Size | DN50-DN1000 |
| Design Standard | GB/T12238, API609, BS EN593 |
| Pressure | PN10/16 |
| Connection Standard | GB/T9113, ANSI B16.1, EN1092, ISO7005 |
| Temperature | -25°C-120°C |
| Testing Standard | GB/T13927, API598, ISO5208 |
