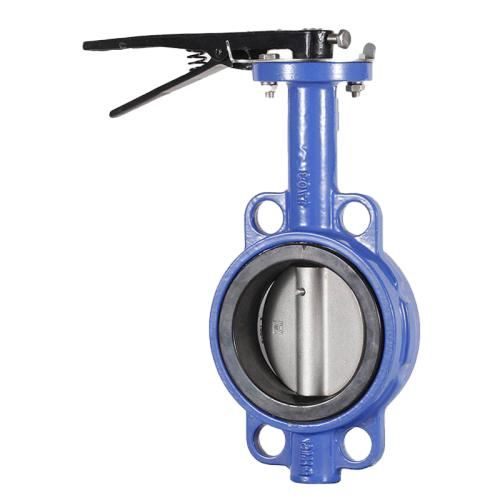

4″ Wafer Butterfly Valve
Overview
4″ Wafer Butterfly Valve supplied by Vcore Valve co., Ltd. Key published specifications: Body Material Stainless Steel (304, 316), Ductile Iron, Cast Iron; Ball Material Stainless Steel (304, 316), Brass; Seat Material EPDM, PTFE, NBR; Stem Material Stainless Steel (304, 316). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Body Material | Stainless Steel (304, 316), Ductile Iron, Cast Iron |
|---|---|
| Ball Material | Stainless Steel (304, 316), Brass |
| Seat Material | EPDM, PTFE, NBR |
| Stem Material | Stainless Steel (304, 316) |
| Size Range | 4 Inch (DN100) |
| Pressure Rating | PN10 / PN16 / PN25 / 150LB |
| Connection Type | Wafer Flange (ANSI B16.34) |
| Actuation Options | Manual, Pneumatic, Electric Actuator |
| Standards Compliance | API 6D, ISO 9001, ANSI B16.34, AWWA C507 |
| Disc Material | Stainless Steel (SS304 / SS316) |
| End Connection | Wafer Type (Flanged) |
| Operation Type | Manual (Handle) |
| Design Standards | API 609 / ASME B16.34 / EN 593 |
