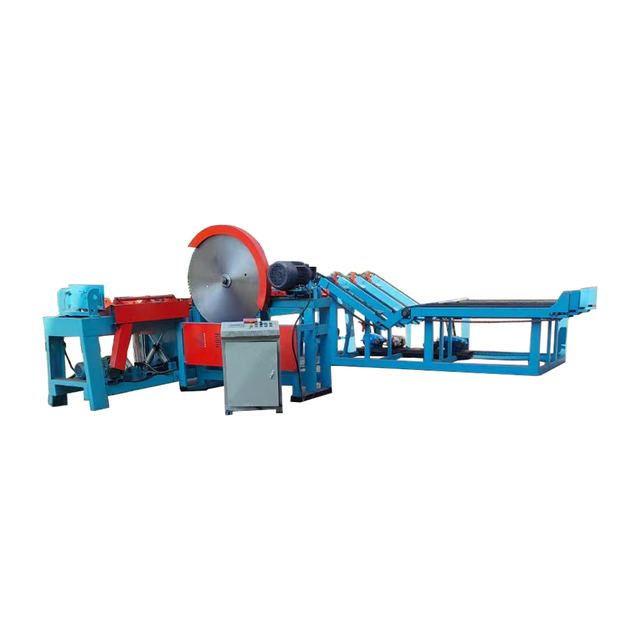

Automatic Log Cutting Saw / Automatic Feeding Crosscut Saw for Logs
Model DL6000-500
Overview
Automatic Log Cutting Saw / Automatic Feeding Crosscut Saw for Logs, from Weifang Jiuyi Information technology co., LTD in Weifang, Shandong. The listing gives certification ISO, CE, saw blade diameter 1200mm and outgoing wood size 300mm To 3000mm.
Technical specifications
| Certification | ISO, CE |
|---|---|
| Saw Blade Diameter | 1200mm |
| Sawing Log Diameter | Max. 50cm |
| Outgoing Wood Size | 300mm To 3000mm |
| Main Motor For Saw Blade | 15kw |
| Feeding Power | 3kw |
| Feeding Rack Motor Power | 3kw |
| Feeding Conveyor Length | 8meters |
| Operation | PLC Autosetworks |
| Saw Head Walking | Automatic Frequency Speed Adjustable |
| Type | Table Saw |
| Model | DL6000-500 |
| Cutting wood max. Diameter | 500mm |
| Incoming wood length | 6000mm |
| Outgoing wood length | 300-3000mm |
| Feeding rack width | 4500mm |
| Feeding rack length | 4000mm |
| Infeed V type roller conveyor length | 8000mm |
| Discharge V type roller conveyor length | 3500mm |
| Feeding motor | 3kw |
| Saw blade motor power | 15kw |
| Discharge mode | Pneumatic |
| Weight | 4000kgs |
