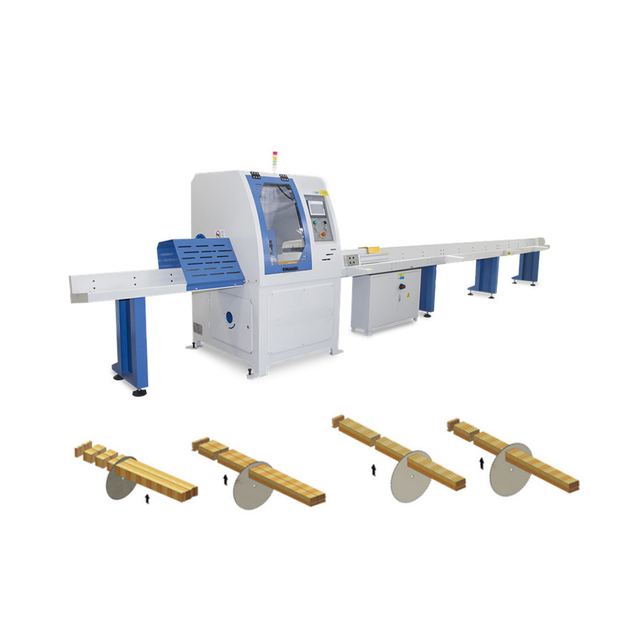

Automatic High Speed Wood CNC Cut Off Saw Machine for Wood Pallet
Model JD-1500
Overview
Automatic High Speed Wood CNC Cut Off Saw Machine for Wood Pallet supplied by Weifang Jiuyi Information technology co., LTD. Listed under Sawmill Machinery. Key published specifications: Certification ISO9001; Saw Blade Diameter 600mm*30mm; Feeding Table Length 2m/ 4m/ 6m; Discharge Table Length 1200mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | ISO9001 |
|---|---|
| Saw Blade Diameter | 600mm*30mm |
| Feeding Table Length | 2m/ 4m/ 6m |
| Discharge Table Length | 1200mm |
| Cutting Height | 10-140mm |
| Cutting Width | 30- 300mm |
| Cutting Section Thickness*width | Max.120*300mm 140*280mm |
| Total Power | 12.5kw |
| Operation | Siemens PLC Touching Screen |
| Weight | 1500kgs |
| Cutting wood max. length | 1500mm |
| Cutting Thickness | 50-120mm |
| Pallet foot pier size | 30-200mm |
| Saw Diameter | 400mm |
| Motor | 7.5kw/3phase |
| Production capacity | 1500-1800P/H |
| Circular blade diameter | 300mm |
| Main motor power | 3kw x2 |
| Overall size | 3200x1800x1150mm |
| 2200x1800x1150mm | 4800x1800x1150mm |
