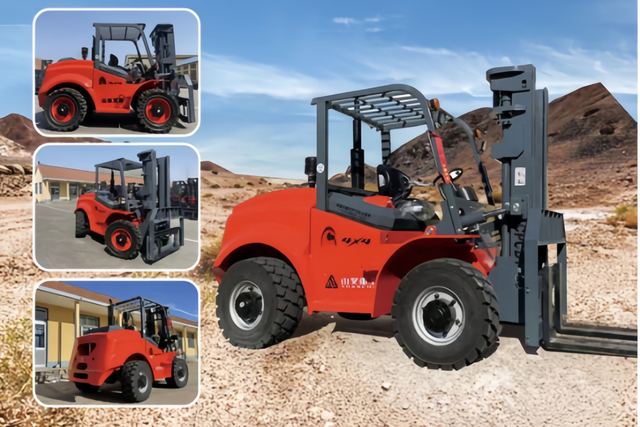

5.0T Integrated Rough Terrain Forklift Built-in Counterweight
Overview
5.0T Integrated Rough Terrain Forklift Built-in Counterweight supplied by Hunan Kamuja Machinery & Equipment Co.,Ltd. Key published specifications: Power Souce Diesel Engine; Max. Lifting Height 3000mm-6000mm (optional Mast); Fork Length 1520mm (optional); Rated Loading Capacity 5000kg / 5ton. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Power Souce | Diesel Engine |
|---|---|
| Max. Lifting Height | 3000mm-6000mm (optional Mast) |
| Fork Length | 1520mm (optional) |
| Rated Loading Capacity | 5000kg / 5ton |
| Engine | Yunnei 4102 Supercharged 76KW/Cummins 55KW(EPA4,Euro V)/Yunnei 55KW(Euro V) |
| Tire | 12-16.5 Special Enhanced |
| Model | T50A ( Integrated ) |
| Rated lifting load | 5000kg |
| Rated lifting height | 3000mm-6000mm |
| Load center distance | 600mm |
| Min.turning radius | 3200mm |
| Min.ground clearance | 350mm |
| Walking speed | 35km/h |
| Max.traction | 30KN |
| Drive type | 4 wheel drive |
| Gearbox | 280 high and low speed torque converter |
| Wheelbase | 1890mm |
| Mast Steel Width | 180mm (plus heavy duty) |
| Overall weight | 6500kg |
| Dimensions | 3500*1892*2300mm |
