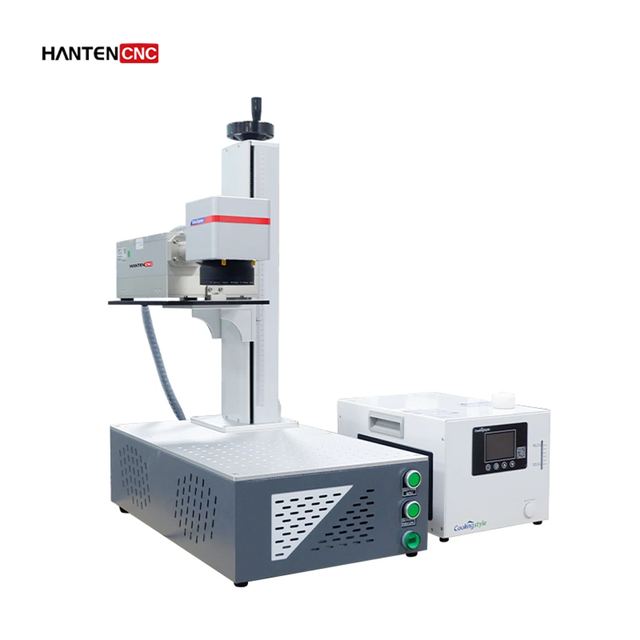

3W 5W 10W Laser UV Marking Machine
Model HTU-3
Overview
3W 5W 10W Laser UV Marking Machine supplied by HANTENCNC. Key published specifications: Power 3W; Laser source JPT; Central wavelength 355nm; Frequency range 20 kHz-150 kHz. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Power | 3W |
|---|---|
| Laser source | JPT |
| Central wavelength | 355nm |
| Frequency range | 20 kHz-150 kHz |
| 20 kHz-150 kHz | 40 kHz-300 kHz |
| Marking area | 100mm-300mm |
| Beam quality | M ²≤ 1.2 |
| Beam diameter | 0.55±0.15mm |
| Supply voltage | DC 12V |
| Cooling method | Water-cooled |
| Galvo head | RC1001 |
| Machine net weight | 60kg |
| Machine dimension | 800*670*660mm |
