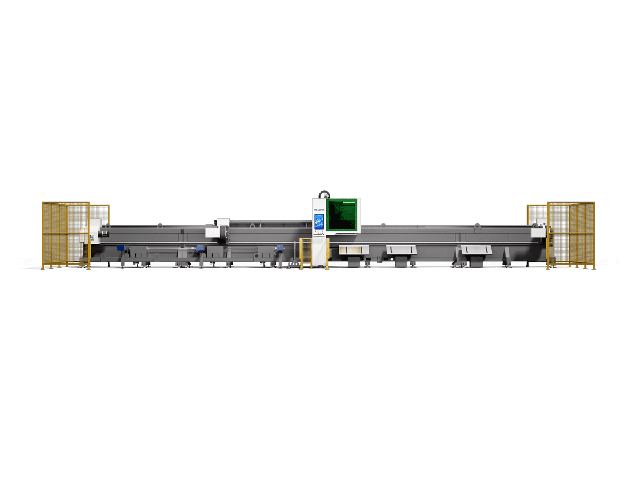

3-Chuck High-Speed Dual Chuck Bevel Tube Laser Cutter
Model LX-T24-3
Overview
3-Chuck High-Speed Dual Chuck Bevel Tube Laser Cutter supplied by Longxin Laser Co., Ltd. Key published specifications: Laser power 3000W-12000W; Cutting Diameter Of Round Tube Φ15-230mm; Cutting Diameter Of Square Tube ▢15*15-230*230mm; Cutting Tube length ≤12000mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Laser power | 3000W-12000W |
|---|---|
| Cutting Diameter Of Round Tube | Φ15-230mm |
| Cutting Diameter Of Square Tube | ▢15*15-230*230mm |
| Cutting Tube length | ≤12000mm |
| Accuracy Of Processing | ±0.05mm |
| Dimensions | 22500*2600*3000mm |
| Weight | ≈9.4t |
| Cutting Tube Type | Round Tube / Square Tube |
| Cutting Material | stainless steel, carbon steel, aluminum,copper,iron |
