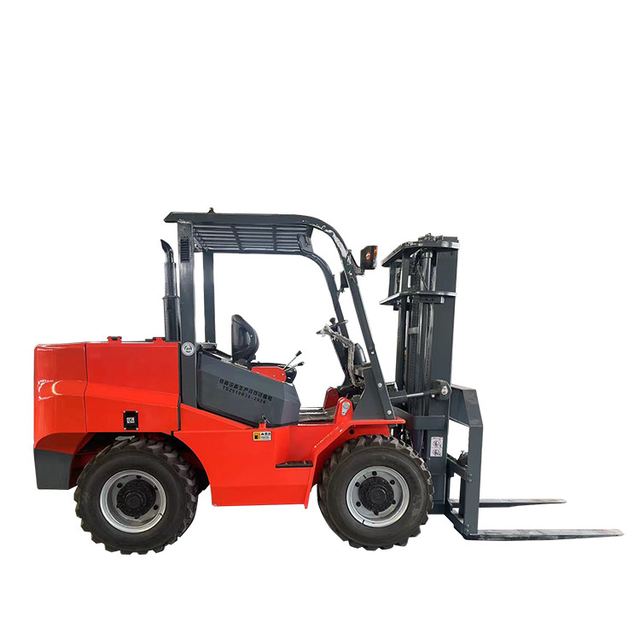

3.5T Integrated Rough Terrain Forklift Built-in Counterweight
Overview
3.5T Integrated Rough Terrain Forklift Built-in Counterweight supplied by Hunan Kamuja Machinery & Equipment Co.,Ltd. Key published specifications: Power Souce Diesel Engine; Max. Lifting Height 3000mm-6000mm (optional Mast); Fork Length 1220mm; Rated Loading Capacity 3500kg/3.5ton. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Power Souce | Diesel Engine |
|---|---|
| Max. Lifting Height | 3000mm-6000mm (optional Mast) |
| Fork Length | 1220mm |
| Rated Loading Capacity | 3500kg/3.5ton |
| Engine | Yunnei54.5KW/Cummins 55KW(EPA4,Euro V)/Yunnei 56KW(Euro V) |
| Model | T35A ( Integrated ) |
| Rated lifting load | 3500kg |
| Rated lifting height | 3000mm-6000mm |
| Load center distance | 600mm |
| Min.turning radius | 2500mm |
| Min.ground clearance | 320mm |
| Walking speed | 35km/h |
| Max.traction | 30KN |
| Drive type | 4 wheel drive |
| Gearbox | 280 high low speed torque converter |
| Wheelbase | 1697mm |
| Mast Steel Width | 160mm |
| Overall weight | 5500kg |
| Dimensions | 3200*1500*2300mm |
