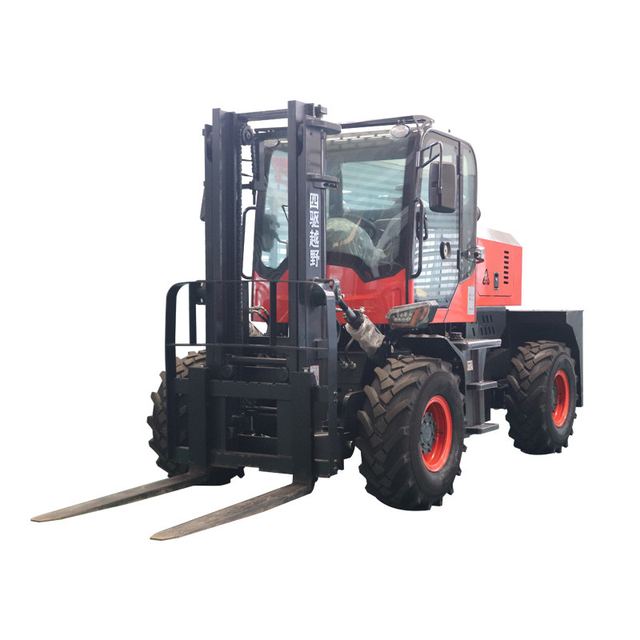

3.5T Back Hinge Rough Terrain Forklift Perfect for Tough Environments
Overview
3.5T Back Hinge Rough Terrain Forklift Perfect for Tough Environments supplied by Hunan Kamuja Machinery & Equipment Co.,Ltd. Key published specifications: Power Souce Diesel Engine; Max. Lifting Height 3000mm-6000mm (optional Mast); Fork Length 1220mm With Optional; Rated Loading Capacity 3500 Kg. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Power Souce | Diesel Engine |
|---|---|
| Max. Lifting Height | 3000mm-6000mm (optional Mast) |
| Fork Length | 1220mm With Optional |
| Rated Loading Capacity | 3500 Kg |
| Engine | Xichai/Yunnei490-42KW/Cummins 55KW(EPA4,Euro V) |
| Model | T35A ( Back hinge ) |
| Rated lifting load | 3500kg |
| Rated lifting height | 3000mm-6000mm |
| Load center distance | 600mm |
| Min.turning radius | 3200mm |
| Min.ground clearance | 350mm |
| Walking speed | 38km/h |
| Max.traction | 25KN |
| Drive type | 4 wheel drive |
| Gearbox | 265 double high low speed torque converter |
| Wheelbase | 2380mm |
| Mast Steel Width | 160mm |
| Overall weight | 4500kg |
| Dimensions | 3700*1850*2350mm |
