20KW wind turbine

Model FD-20000

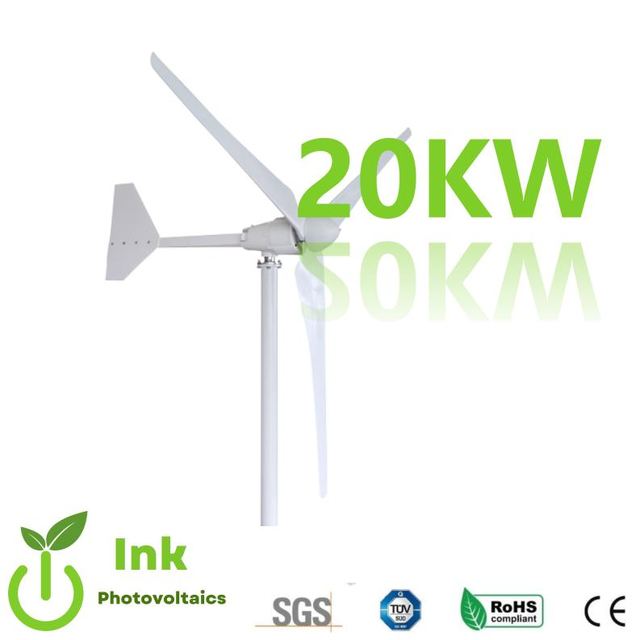

20KW wind turbine

Overview

20KW wind turbine, listed by Iinkpv in Foshan, Guangdong. The listing gives rated power 20000W, starting wind speed 2.5m/s and rated wind speed 11m/s.

Technical specifications

Rated power20000W
Starting wind speed2.5m/s
Rated wind speed11m/s
Security wind speed45m/s
Rated DC voltage220/240/380V
Rotor diameter12m
Type3phase permanent magnetism synchronization generator
Blade materialExtra-strong fiber glass
N.W&G.W(kg)450kg
Wattage20kw wind turbine system off grid
Output voltageSingle phase or three phase
Wind Power20kw/360v
Wind Turbine Maximum Input90A
Unload Voltage（factory default）106V
Unload Current（factory default）40A
Capacity12V/200AH full sealed
Size522*240*219mm
