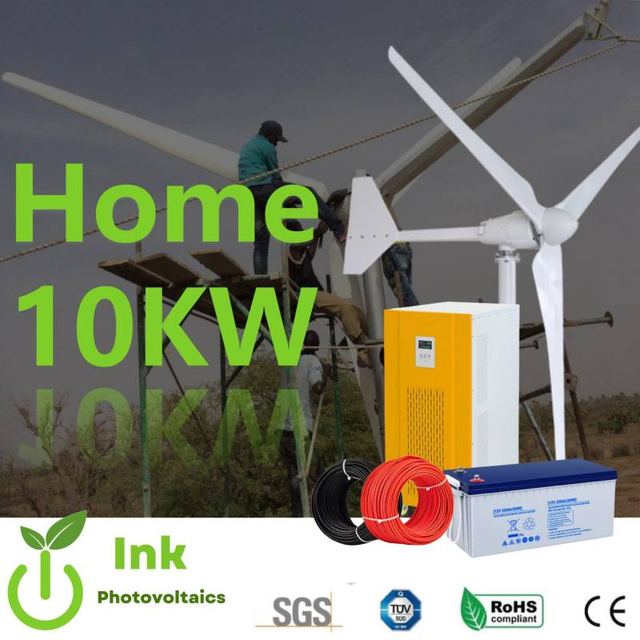

10kw wind turbine system
Model FD-10000
Overview
10kw wind turbine system supplied by Iinkpv. Listed under Wind Turbines. Key published specifications: Rated power 10000W; Starting wind speed 3m/s; Cut-in wind speed 4m/s; Rated wind speed 13m/s. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Rated power | 10000W |
|---|---|
| Starting wind speed | 3m/s |
| Cut-in wind speed | 4m/s |
| Rated wind speed | 13m/s |
| Security wind speed | 60m/s |
| Rated DC voltage | 192V |
| Rated speed | 185 r/m |
| Rotor diameter | 7210mm |
| Type | 3phase permanent magnetism synchronization generator |
| Blade material | Extra-strong fiber glass |
| N.W&G.W(kg) | 310kg |
| Peak Power（20ms) | 30000VA |
| AC Input Voltage Range | For 220V 145VAC~275VAC |
| Output Wave | Pure sine wave |
| Noise | ≤65dB |
| Elevation | 2000m（More than derating） |
| Installation Method | Tower |
| Humidity | 0%~95% ,No condensation |
| Wattage | 10kw wind turbine system off grid |
| Output voltage | Single phase or three phase |
| Single phase | 110V/120V/220V/230V/240V ±2% |
| Three phase | 380Vac/400Vac±10%(customized 190Vac/200VAC) |
| Wind Power | 10kw/192v |
| Wind Turbine Maximum Input | 90A |
| Unload Voltage（factory default） | 106V |
| Unload Current（factory default） | 40A |
| Capacity | 12V/200AH full sealed |
| Size | 522*240*219mm |
