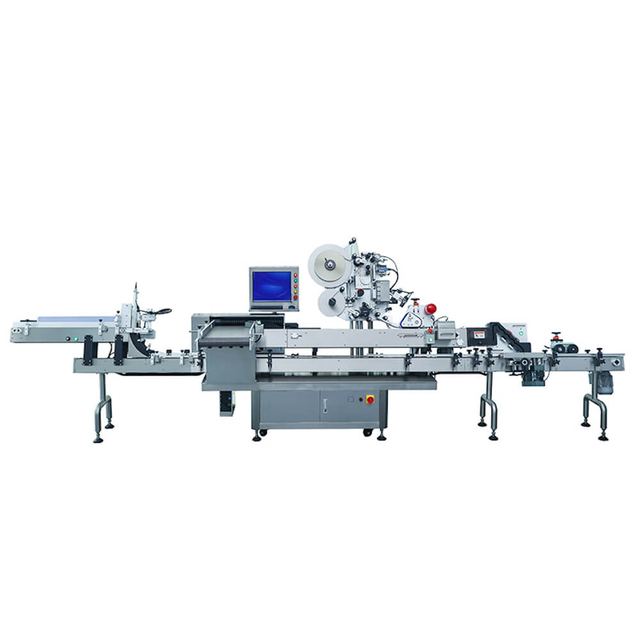

Y-510 Labeling Machine
Overview
Y-510 Labeling Machine supplied by Vila. Listed under Labeling Machinery. Key published specifications: Applicable Products 1-20ml ampoules,5pcs/tray or 10pcs/tray; Applicable tray size Length:50-150mm,Width:60-120mm; Tray inserting capacity 30~90trays/min; Airsource 0.4MPa. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Applicable Products | 1-20ml ampoules,5pcs/tray or 10pcs/tray |
|---|---|
| Applicable tray size | Length:50-150mm,Width:60-120mm |
| Tray inserting capacity | 30~90trays/min |
| Airsource | 0.4MPa |
| Air Consumption | 300 L/min(90 trays/min) |
| Power | 0.4kw |
| Applicable product size | 10-30mm |
| Applicable label material | Paper labels and transparent labels |
| Labeling speed | 0-500 bottles /min |
| Labeling accuracy | ±1mm ( except packaging material error ) |
| Length of label | 25-95mm |
| Power supply | 2.5KW, AC220V, 50HZ |
| Wire Specifications | ＞1.5mm² |
| Total weight (approximately) | Around 380Kg |
| Maximum Label Roll Outer Diameter | Φ300mm |
| Label spacing | 2-4 mm |
| Top/bottom margins on liner | 2 mm |
| Grammage | >62 g/m2 |
| Tensile strength | Machine Direction : 16kg/25mm ,Cross direction: 7kg/25mm |
| Breaking strength | Machine Direction : 25g/sheet ,Cross direction: 31g/sheet |
| Length | 50-150mm,Width:60-120mm |
