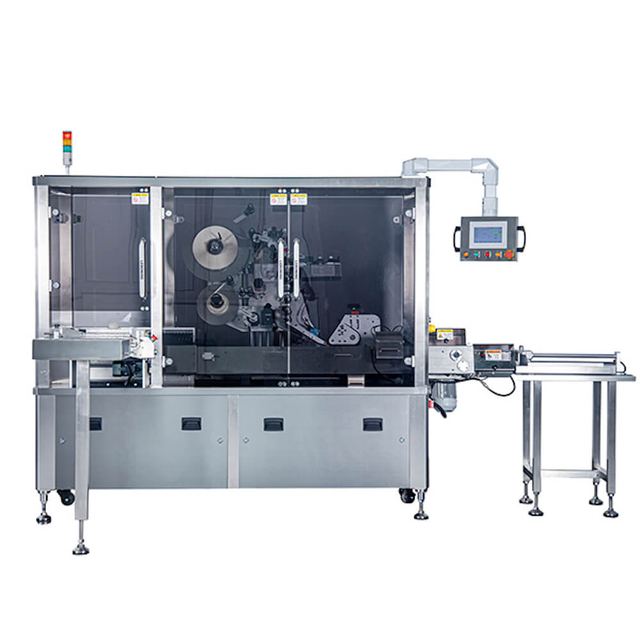

Y-500S Labeling Machine

Y-500S Labeling Machine

Overview

Y-500S Labeling Machine, listed under Labeling Machinery by Vila in Songjiang, Shanghai. Published figures include applicable bottle diameter 10-30mm, applicable label material Paper labels and transparent labels and labeling speed 0-500 bottles /min.

Technical specifications

Applicable bottle diameter10-30mm
Applicable label materialPaper labels and transparent labels
Labeling speed0-500 bottles /min
Labeling accuracy±1mm ( except packaging material error )
Length of label25-95mm
Power supply2.5KW, AC220V, 50HZ
Wire Specifications＞1.5mm²
Total weight (approximately)Around 380Kg
Maximum Label Roll Outer DiameterΦ300mm
Label spacing2-4 mm
Top/bottom margins on liner2 mm
Grammage>62 g/m2
Tensile strengthMachine Direction : 16kg/25mm ,Cross direction: 7kg/25mm
Breaking strengthMachine Direction : 25g/sheet ,Cross direction: 31g/sheet
