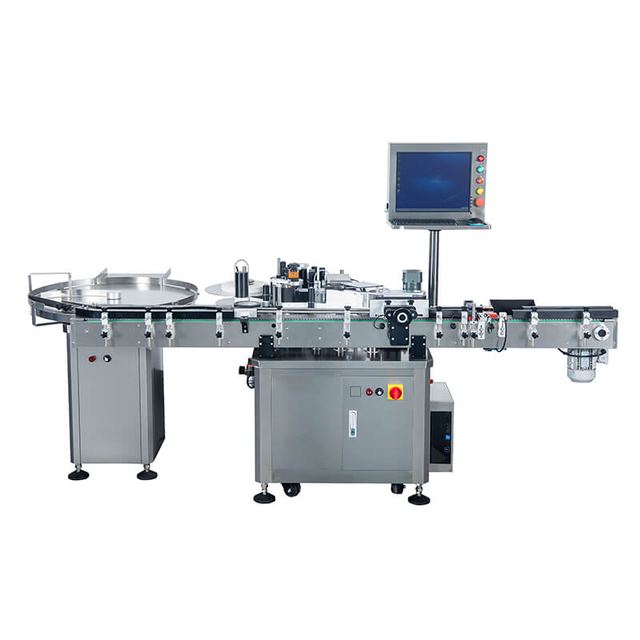

Y-400 Labeling Machine
Overview
Y-400 Labeling Machine supplied by Vila. Listed under Labeling Machinery. Key published specifications: Applicable bottle diameter 10-70mm; Applicable label material Paper labels and transparent labels; Labeling speed 0-350 bottles /min; Labeling accuracy ±1mm ( except packaging material error ). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Applicable bottle diameter | 10-70mm |
|---|---|
| Applicable label material | Paper labels and transparent labels |
| Labeling speed | 0-350 bottles /min |
| Labeling accuracy | ±1mm ( except packaging material error ) |
| Power supply | 3.5KW, AC220V, 50HZ |
| Wire Specifications | ＞1.5mm² |
| Machine dimension | 2716*1333*1650mm |
| Total weight (approximately) | Around 350Kg |
| Maximum Label Roll Outer Diameter | Φ400mm |
| Label spacing | 2-4 mm |
| Top/bottom margins on liner | 2 mm |
| Grammage | >62 g/m2 |
| Tensile strength | Machine Direction : 16kg/25mm ,Cross direction: 7kg/25mm |
| Breaking strength | Machine Direction : 25g/sheet ,Cross direction: 31g/sheet |
