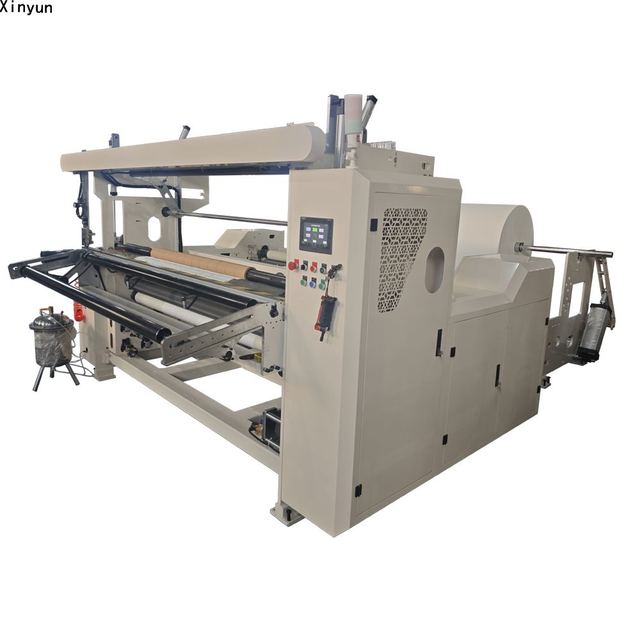

XY-TQ-G High speed maxi roll paper slitting machine

XY-TQ-G High speed maxi roll paper slitting machine

Overview

XY-TQ-G High speed maxi roll paper slitting machine, listed by Fujian Xinyun Machinery Development Co.,Ltd in Quanzhou, Fujian. The listing gives the width of jumbo roll 1800-2800 mm, jumbo roll inner core diameter 3inches(76.2mm) and slitting diameter 1200 mm.

Technical specifications

The width of jumbo roll1800-2800 mm
Jumbo roll inner core diameter3inches(76.2mm)
Slitting diameter1200 mm
Finish product Inner core diameter76 mm
Slitting WidthAdjustable
Speed200-230 m/min
Base paper core shaftAir-shaft
Rewinding SystemPneumatic timing rewinding
Slitting SystemAutomatic slitting control
Discharging UnitAutomatic discharging
Edge Cutting Unit2.2KW Vacuum suction edge cutting 2.2 KW
PowerFrequency conversion speed regulate 15KW
Main Technical ParametersThe width of jumbo roll
