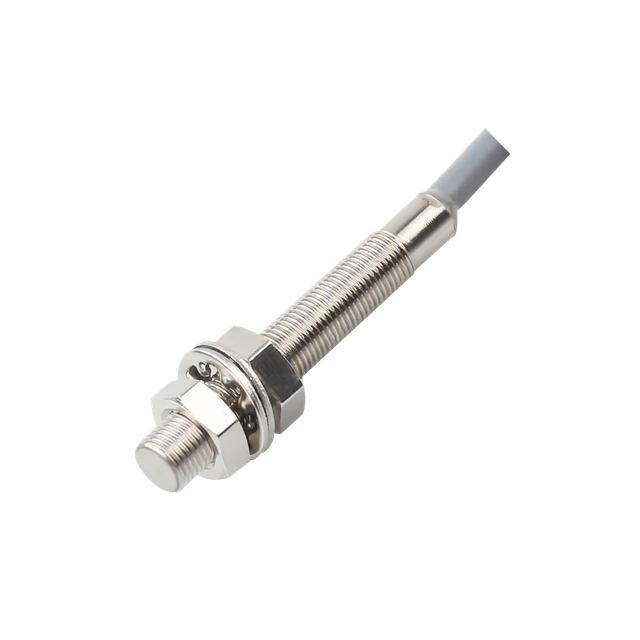

XSZ M5/M6 Miniature Inductive Proximity Sensor
Overview
XSZ M5/M6 Miniature Inductive Proximity Sensor supplied by Zhejiang Xinsenzheng Automation Co., Ltd. Listed under Photoelectric Sensors. Key published specifications: Dimensions M5 / M6 Options Available; Installation Method Flush Mount (Shielded); Sensing Distance 1 mm ± 15%; Current Consumption 10 mA Max.. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Dimensions | M5 / M6 Options Available |
|---|---|
| Installation Method | Flush Mount (Shielded) |
| Sensing Distance | 1 mm ± 15% |
| Current Consumption | 10 mA Max. |
| Load Current | 100 mA Max. (Residual Voltage: 1.5V Max.) |
| Response Frequency | 1K Hz |
| Protection Circuits | Reversed power supply polarity protection |
| 100 mA Max. (Residual Voltage | 1.5V Max.) |
| Operating Temp | -25 to +70°C | Connection: Pre-wired cable |
