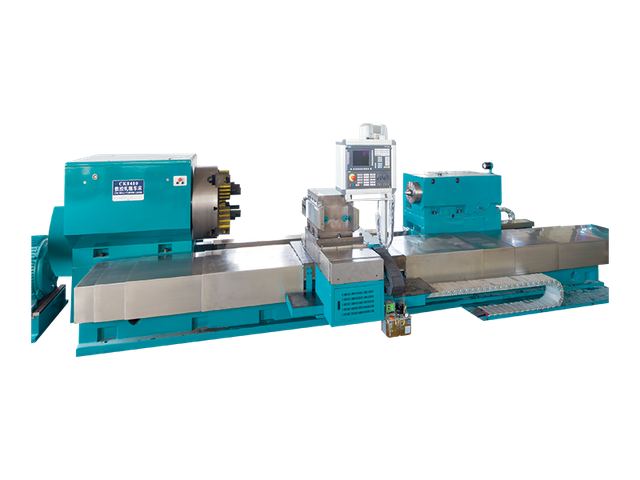

XK500G Multi-function CNC Roll Processing Machine
Overview
XK500G Multi-function CNC Roll Processing Machine supplied by Machine Tool Co., Ltd. Key published specifications: Maximum diameter 500mm; Maximum working length 2500mm; Applicable to rebar specifications 6~50mm; Maximum speed of cutter milling head 600rpm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Maximum diameter | 500mm |
|---|---|
| Maximum working length | 2500mm |
| Applicable to rebar specifications | 6~50mm |
| Maximum speed of cutter milling head | 600rpm |
| Engraving main motor | 2.2Kw 8000r/min |
| Spindle taper hole | Morse number five |
| Chuck | Manual four claws Φ500mm |
| Workpiece rotation feed speed | 50~600°/min |
| Fast forward speed of workpiece rotation | 4000°/min |
| Engraving milling head swing speed | 40~600°/min |
| Cooling pump motor | 120W 3-phase 380V/50HZ |
| Control system | SINUMERIK 808D |
| Servo drive, motor | FL |
| Y-axis (workpiece axis) | 2.0Kw |
| A-axis (longitudinal moving axis) | 1.75KW; |
| C-axis | 2.0KW |
| Machine weight | 6T |
