Overview

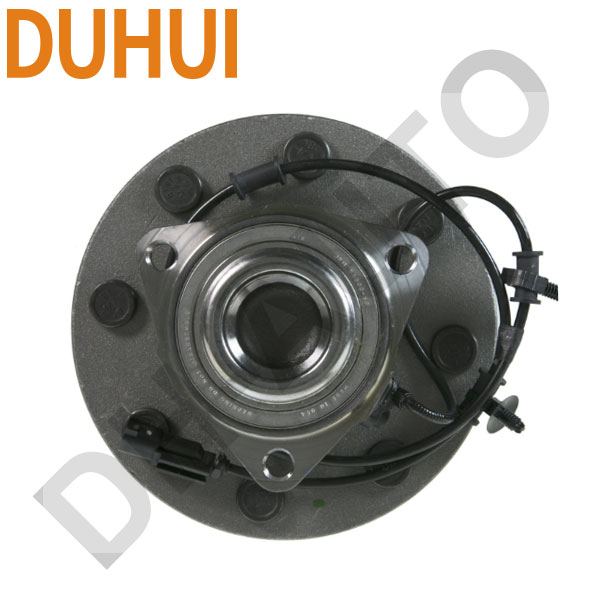

Wheel Hub 515114 supplied by DUHUI Bearing. Listed under Roller Bearings. Key published specifications: DH Code DWH01770; Product Type Wheel Hub Assembly; Installation Location Front Axle; Kit Contents Hub × 1. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

DH Code	DWH01770
Product Type	Wheel Hub Assembly
Installation Location	Front Axle
Kit Contents	Hub × 1
Flange Diameter	205.20 mm (8.079 inch)
Bolt Circle Diameter	164.70 mm (6.483 inch)
Wheel Pilot Diameter	121.00 mm (4.764 inch)
Brake Pilot Diameter	122.20 mm (4.811 inch)
Flange Offset	54.50 mm (2.146 inch)
Hub Pilot Diameter	99.30 mm (3.909 inch)
Bolt Circle Diameter (Hub)	172.00 mm (6.772 inch)
Flange Shape	Modified
ABS Sensor	With integrated sensor
