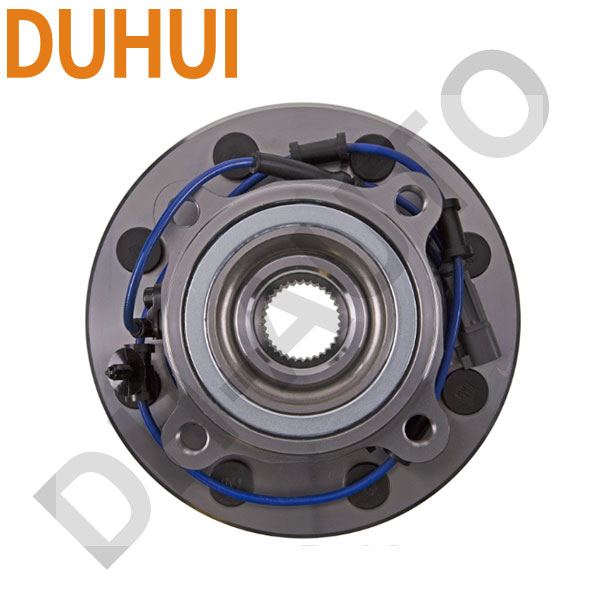

Wheel Hub 515101
Overview
Wheel Hub 515101 supplied by DUHUI Bearing. Listed under Roller Bearings. Key published specifications: DH Code DWH1596; Product Type Wheel Hub Assembly; Installation Location Front Axle; Kit Contents Hub × 1. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| DH Code | DWH1596 |
|---|---|
| Product Type | Wheel Hub Assembly |
| Installation Location | Front Axle |
| Kit Contents | Hub × 1 |
| Flange Diameter | 205.00 mm (8.071 inch) |
| Bolt Circle Diameter | 164.80 mm (6.487 inch) |
| Wheel Pilot Diameter | 120.90 mm (4.760 inch) |
| Brake Pilot Diameter | 122.00 mm (4.803 inch) |
| Flange Offset | 54.80 mm (2.159 inch) |
| Hub Pilot Diameter | 113.80 mm (4.481 inch) |
| Hub Bolt Circle Diameter | 140.50 mm (5.531 inch) |
| Bolt Hole MET | M14 × 1.5 |
| ABS Sensor | With integrated sensor |
| Engine Configurations | 5.9L 359CID Turbo Diesel (VIN C) – 2006–2007 |
