Overview

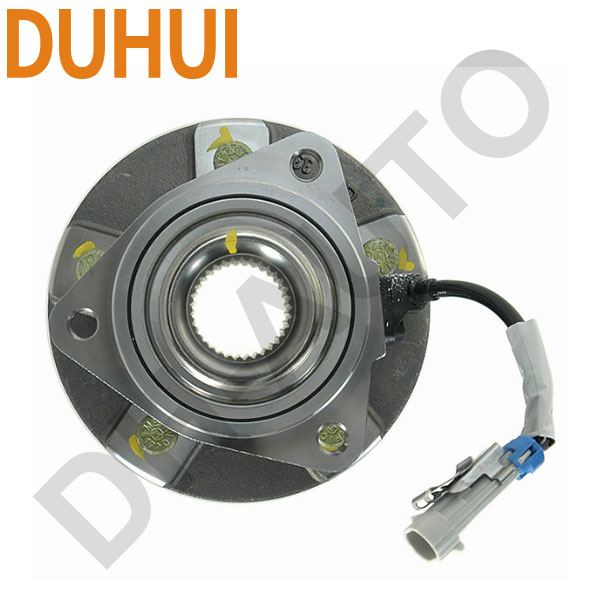

Wheel Hub 513189 supplied by DUHUI Bearing. Listed under Roller Bearings. Key published specifications: Product Type Wheel Hub Assembly; Installation Location Front Axle; Kit Contents Hub × 1; Flange Diameter 150.00 mm (5.906 inch). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Product Type	Wheel Hub Assembly
Installation Location	Front Axle
Kit Contents	Hub × 1
Flange Diameter	150.00 mm (5.906 inch)
Bolt Circle Diameter	115.00 mm (4.528 inch)
Wheel Pilot Diameter	70.10 mm (2.760 inch)
Brake Pilot Diameter	70.60 mm (2.780 inch)
Flange Offset	42.00 mm (1.654 inch)
Hub Pilot Diameter	90.20 mm (3.551 inch)
Bolt Size	M12 × 1.5
Bolt Hole MET	M12 × 1.5
Flange Shape	Triangular
ABS Sensor	With integrated sensor
