Overview

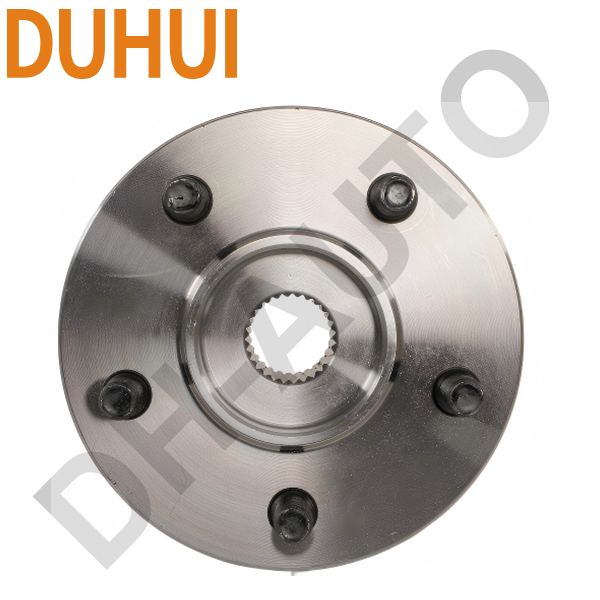

Wheel Hub 513084 supplied by DUHUI Bearing. Listed under Roller Bearings. Key published specifications: DH Code DWH1330; Product Type Wheel Hub Assembly; Installation Location Front Axle; Kit Contents Hub × 1. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

DH Code	DWH1330
Product Type	Wheel Hub Assembly
Installation Location	Front Axle
Kit Contents	Hub × 1
Flange Diameter	6.043″ / 153.50 mm
Bolt Circle Diameter	4.500″ / 114.30 mm
Wheel Pilot Diameter	2.812″ / 71.40 mm
Brake Pilot Diameter	2.832″ / 71.90 mm
Flange Offset	2.133″ / 54.30 mm
Hub Pilot Diameter	3.942″ / 88.60 mm
Hub Bolt Circle Diameter	4.750″ / 120.70 mm
Bolt Size	1/2-20 UNF
Bolt Hole MET	M12 × 1.75
Flange Shape	Triangular
